Product Description

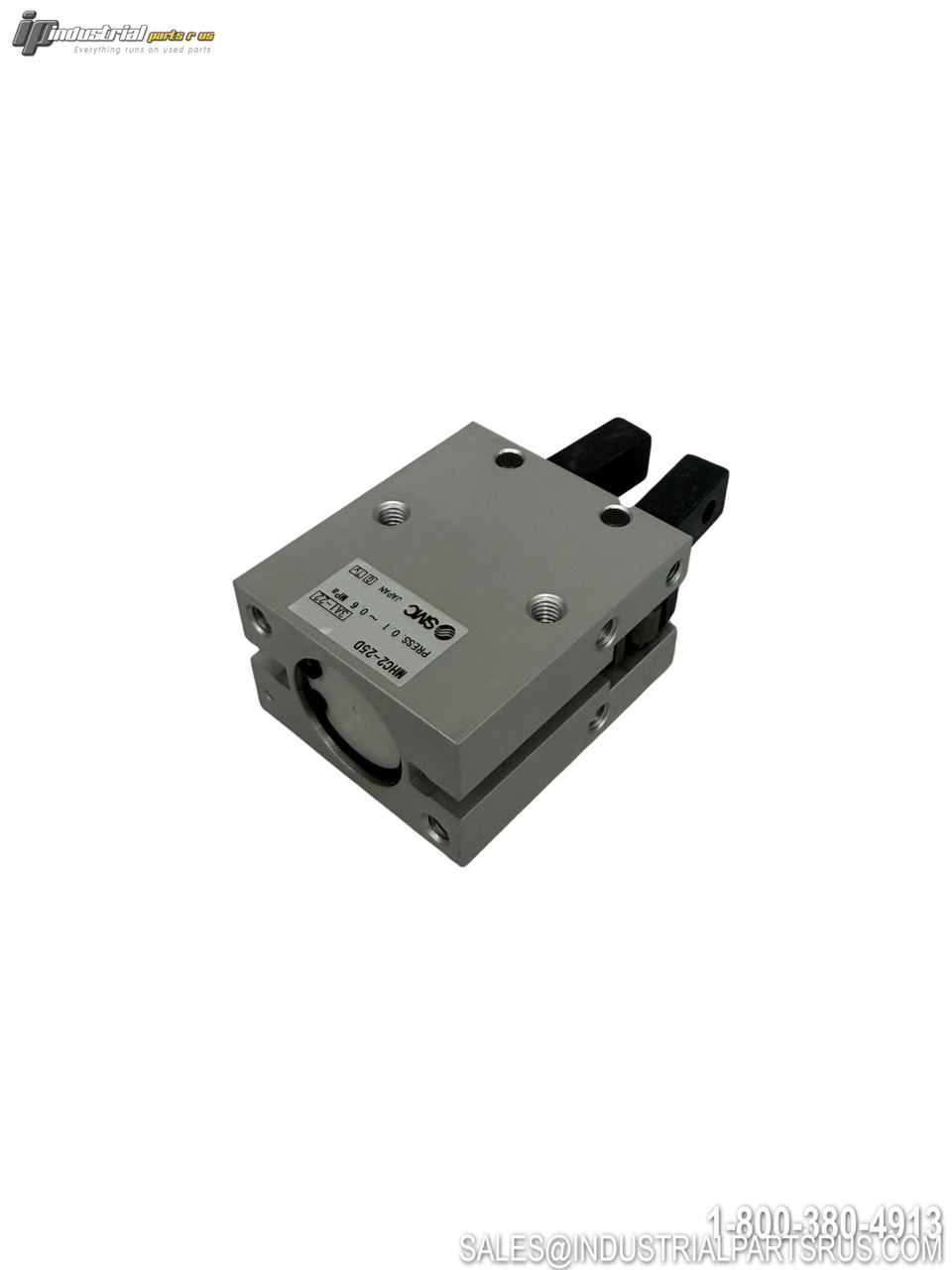

The SMC MHC2-25D is an angular-style, compact 2-finger pneumatic air gripper from SMC's MHC2 Series. It features a double piston mechanism that delivers a large gripping moment of 1.36 N·m while maintaining a compact body envelope. The gripper is designed for applications requiring angular finger actuation, with a finger opening/closing angle range of 30° to –10°, making it well-suited for workpieces of irregular shapes or tight-space installations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | MHC2-25D |
| Series | MHC2 |
| Product Type | Angular Type Air Gripper (Pneumatic Gripper) |
| Bore Diameter | 25 mm |
| Cylinder Action | Double Acting |
| Gripper Type | Angular |
| Number of Fingers | 2 Finger – Standard (Basic Style) |
| Opening / Closing Angle (Each Side) | 30° to –10° |
| Gripping Moment (Double Acting) | 1.36 N·m |
| Gripping Moment (Single Acting) | 1.08 N·m |
| Operating Pressure – Double Acting | 0.1 to 0.6 MPa (15 to 87 psi) |
| Operating Pressure – Single Acting | 0.25 to 0.6 MPa |
| Fluid | Air |
| Port Size | M5 x 0.8 |
| Body Option | Side Ported |
| Ambient / Fluid Temperature | –10 to 60°C (14°F to 140°F) |
| Overall Length | 92 mm |
| Overall Width | 52 mm |
| Overall Height | 33.6 mm |
| Weight | 316 g (catalog value) |
| Repeatability | ±0.01 mm |
| Max Operating Frequency | 180 cycles/min |
| Lubrication | Not Required |
| Auto Switch Compatible | Yes – Solid State (3-wire, 2-wire); recessed mounting groove |
| Built-in Variable Throttle | Yes |
| Manufacturer | SMC Corporation |
