Product Description

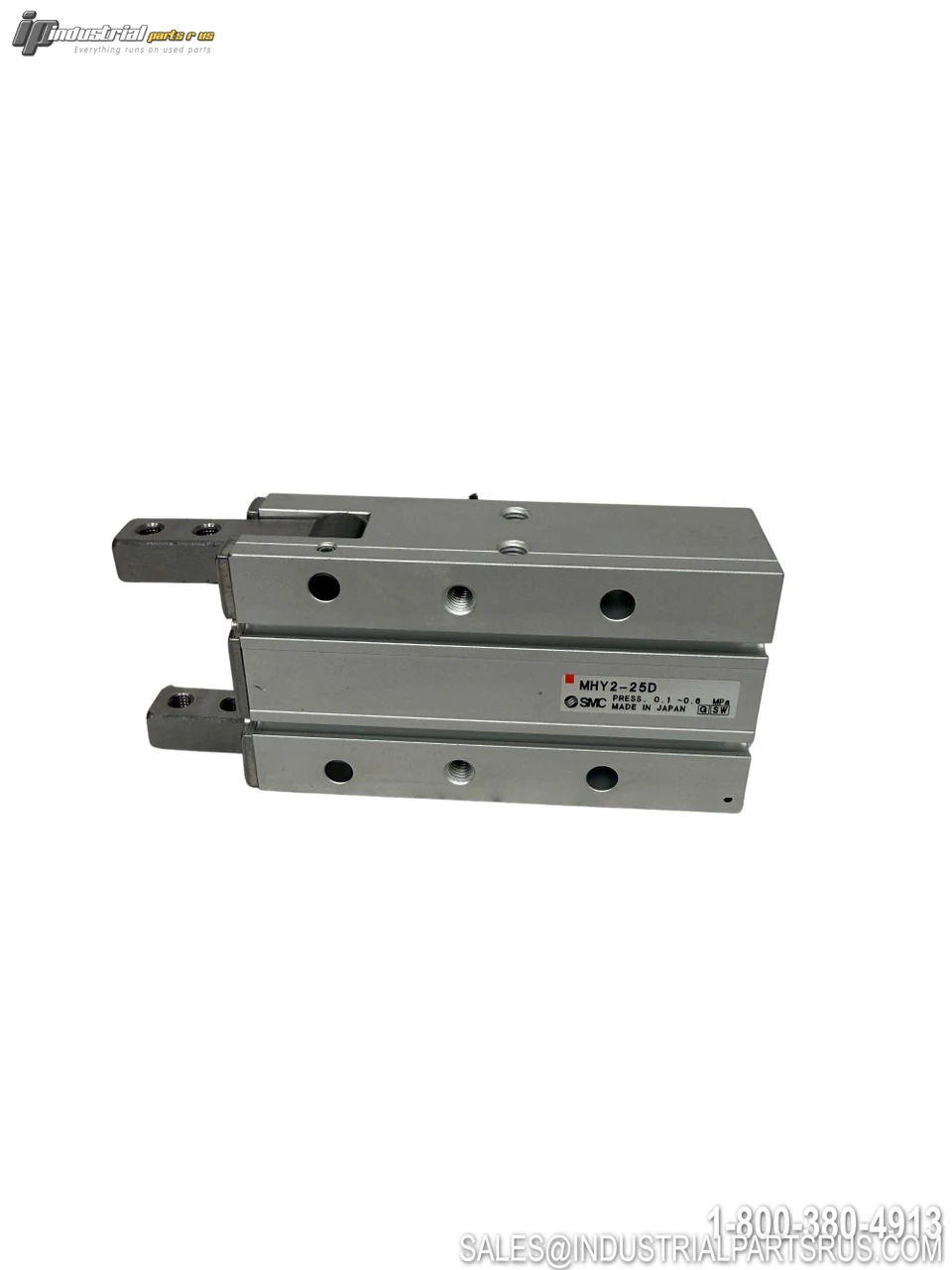

The SMC MHY2-25D is a compact 180-degree angular pneumatic gripper featuring cam-style operation for reliable gripping force. This double-acting gripper uses a piston/cam design to deliver large gripping forces while maintaining small size and lightweight construction, making it ideal for automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MHY2-25D |
| Product Type | 180° Angular Air Gripper |
| Bore Diameter | 25 mm |
| Operating Pressure Range | 0.1 to 0.6 MPa |
| Gripping Force (at 0.5 MPa) | 75 N |
| Port Size | M5×0.8 |
| Operation Type | Double Acting |
| Gripper Style | Cam Style |
| Opening Angle | 180° |
| Number of Fingers | 2 |
| Weight | 620 g |
| Operating Temperature Range | -10°C to 60°C |
| Lubrication | Not Required (Pre-lubricated) |
| Auto Switch Capability | Yes (4 locations) |
| Material | Stainless Steel (Standard) |
| Series | MHY2 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686246
Manufacturer SMC
Part Number MHY2-25D
Shelf K-60
Bore Diameter 25 mm
Model MHY2-25D
MPN MHY2-25D
Type Pneumatic Gripper
