Product Description

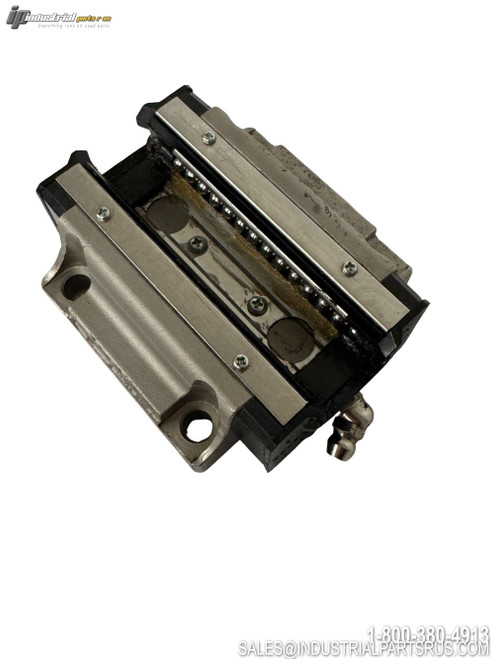

The THK HSR25B is a high-precision linear motion guide block designed for 25mm rail systems. This full-ball type linear bearing features a 4-way equal load design with ball rows placed at 45-degree contact angles, providing uniform load distribution in radial, reverse radial, and lateral directions.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | THK |
| Model/Part Number | HSR25B |
| Product Type | Linear Guide |
| Rail Size | 25mm |
| Block Length | 92mm |
| Block Width | 48mm |
| Block Height | 35mm |
| Combined Height | 36mm |
| Mounting Hole Spacing | 57x45mm |
| Rail Screw Size | M7 |
| Hardness | 58-64 HRC |
| Loading Method | 4-way Equal Load Type |
| Block Mounting Direction | Bottom Surface Mount |
| Ball Retainer | Ball Cage (Caged Ball) |
| Contact Angle | 45 degrees |
| LaCS Availability | Available |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer THK
Part Number HSR25B
Shelf K-64 Tub5
Model HSR25B
MPN HSR25B
Type Linear Guide
