Product Description

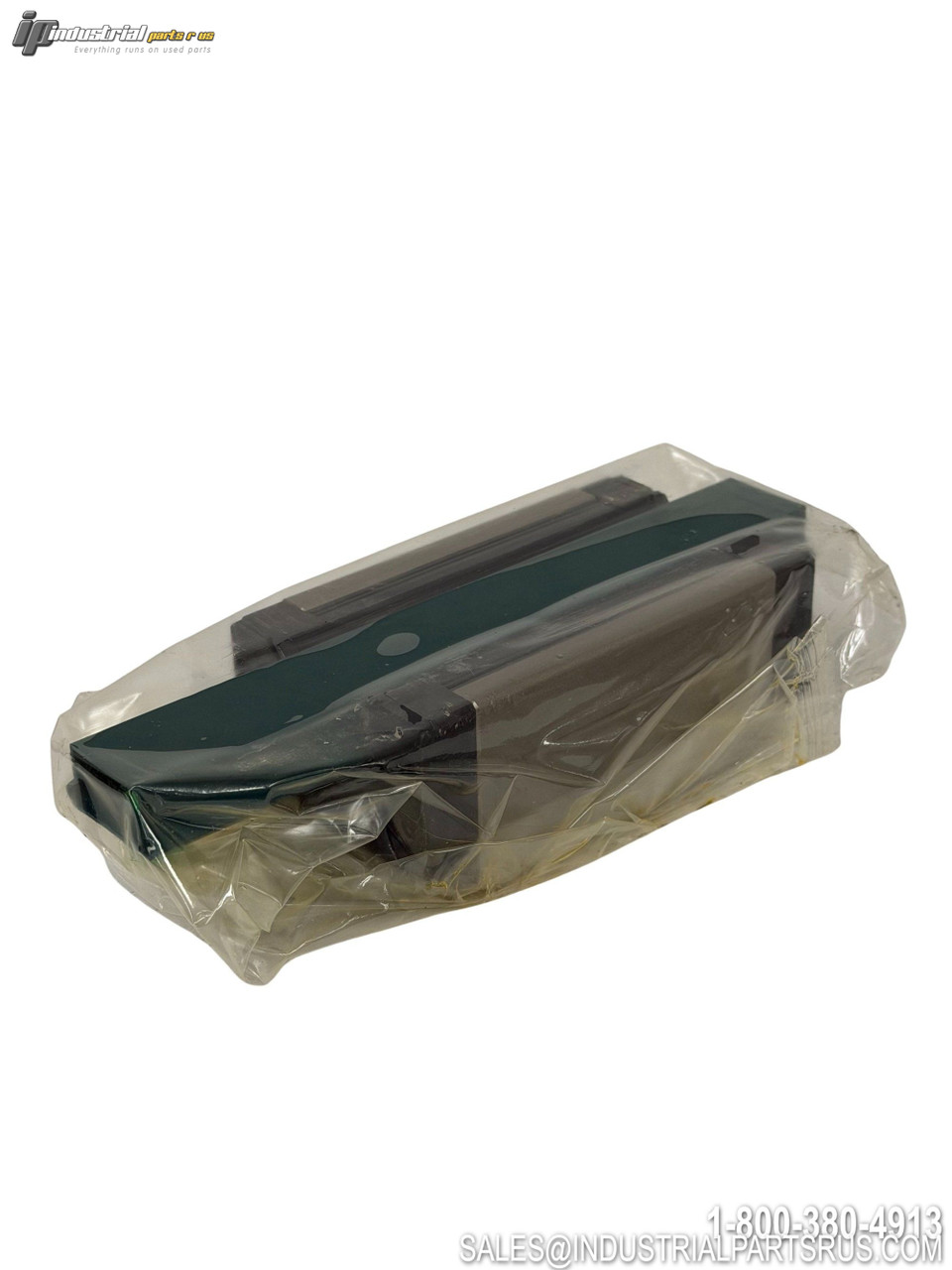

The THK SHS-35R is a linear guide block from THK's SHS series caged ball linear motion guide system. This precision linear bearing provides smooth, accurate linear motion with a 4-way equal load design that allows mounting in any orientation. It features a caged ball design for extended service life and is ideal for automation equipment, CNC machines, and precision positioning systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | THK |
| Model/Part Number | SHS-35R |
| Product Type | Linear Guide |
| Series | SHS |
| Block Height (H) | 55mm |
| Block Width (W) | 70mm |
| Block Length (L) | 122mm |
| Block Width Long (WR) | 152mm |
| Rail Size | 35mm |
| Rail Height (HR) | 50mm |
| Rail Width (WR) | 50mm |
| Total Height (KR) | 72mm |
| Mounting Bolt | M8×12 |
| Center Distance (S) | 93mm |
| Center Distance Long (SR) | 123mm |
| Distance to Center Height (K1) | 14.7mm |
| Distance to Center Width (B) | 47.5mm |
| Mounting Hole Spacing (T) | 15mm |
| Rail Mounting Hole Spacing | 12mm |
| Grease Nipple Type | B-M6F |
| Loading Method | 4-way Equal Load Type |
| Block Mounting Direction | Top surface mount |
| Ball Retainer Type | Caged Ball |
| LaCS Availability | Available |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer THK
Part Number SHS-35R
Shelf A-3
Model SHS-35R
MPN SHS-35R
Type Linear Guide
