Product Description

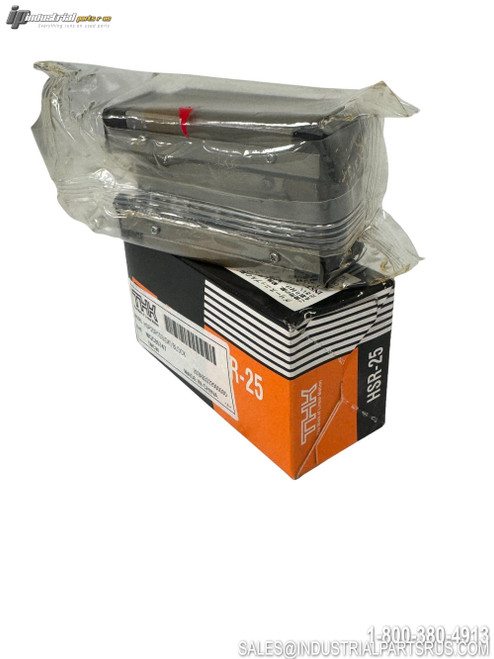

The THK HSR25R1SS(GK) is a precision linear guide block from THK's HSR-R series designed for heavy-duty applications requiring smooth linear motion. This narrow block design features four-row ball construction with 45° contact angles for uniform load distribution in all directions and low friction operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | THK |
| Model/Part Number | HSR25R1SS(GK) |
| Series | HSR-R |
| Block Type | Narrow Block |
| Overall Length | 83.1 mm |
| Width | 48 mm |
| Height | 40 mm |
| Rail Width | 23 mm |
| Nominal Rail Size | 25 mm |
| Dynamic Load Capacity | 19.9 kN |
| Basic Load Rating | 27.6 kN |
| Mounting Holes | 4 Through Holes (M6×8) |
| Seal Type | SS (End & Side Seals) |
| Weight | 1.45 kg |
| Grease Nipple | B-M6F |
| Load Type | Heavy Load |
| Ball Rows | Four-row |
| Contact Angle | 45° |
| Operating Temperature | -20 to +80°C |
| Material | Steel |
| Application | CNC Machine Tools, Automation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer THK
Part Number HSR25R1SS(GK)
Shelf GS 2
Model HSR25R1SS(GK)
MPN HSR25R1SS(GK)
Type Linear Guide
