Product Description

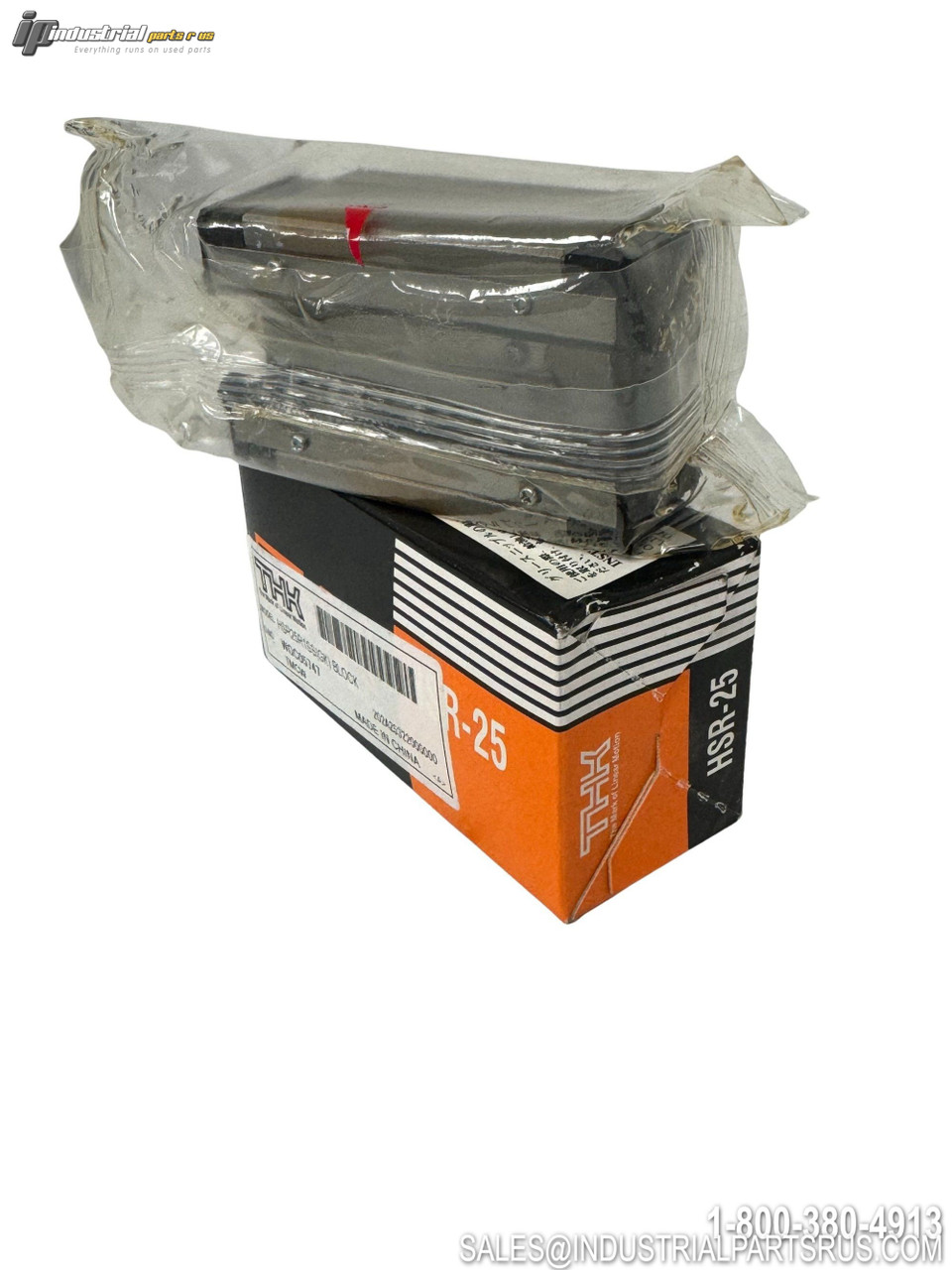

The THK HSR25R1SS is a precision linear guide carriage designed for high-performance linear motion applications. This compact design features four-row ball bearing construction with 45-degree contact angles for optimal load distribution in all directions. The carriage includes comprehensive sealing with end seals, side seals, and inner seals for reliable operation in demanding environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | THK |
| Model/Part Number | HSR25R1SS |
| Series | HSR-R |
| Nominal Rail Size | 25mm |
| Rail Width | 23mm |
| Dynamic Load Capacity (C) | 19.9kN / 27.6kN |
| Static Load Capacity (C0) | 36.4kN |
| Overall Length (L) | 83.1mm |
| Height (M) | 40mm |
| Width (W) | 48mm |
| Mounting Bolt | M6 x 8mm |
| Seal Type | SS (End + Side + Inner Seals) |
| Weight | 0.54kg / 0.556kg |
| Preload | Normal |
| Block Type | Narrow Block |
| Ball Rows | Four-row |
| Material | Steel, Plastic |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Country/Region of Manufacture China
Manufacturer THK
Part Number HSR25R1SS
Shelf GS 2 Tub 2
Model HSR25R1SS
MPN HSR25R1SS
Type Linear Guide
