Product Description

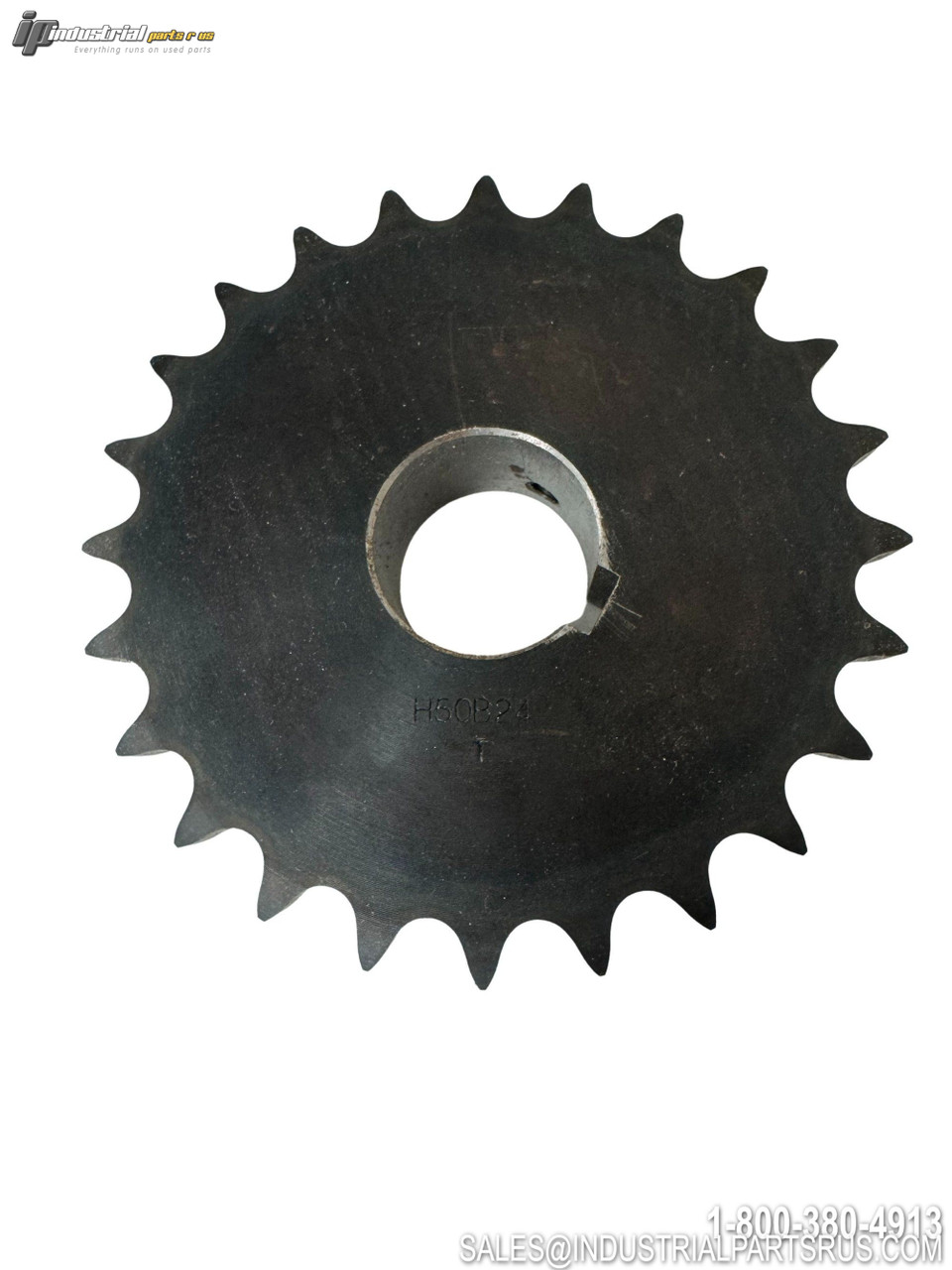

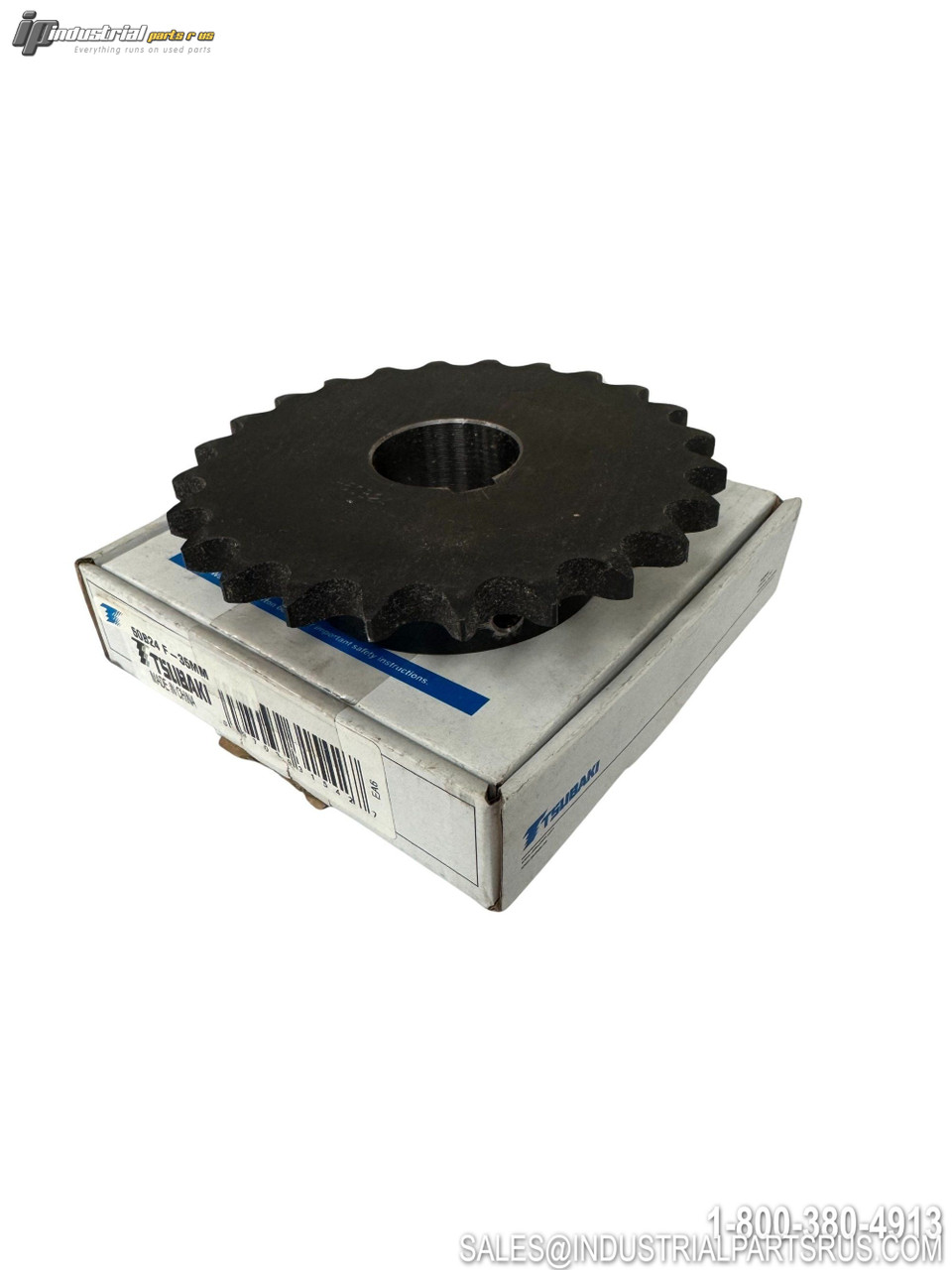

The Tsubaki H50B24 is a single-strand, #50 roller chain sprocket featuring a B-style hub (hub extension on one side), 24 hardened teeth, and a plain (stock) bore design for custom machining to the desired shaft size. It is manufactured from carbon steel and conforms to ANSI standards for #50 (5/8" pitch) roller chain applications. The "H" prefix denotes induction or flame-hardened teeth for extended wear life in demanding, high-load, or high-speed power transmission applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Tsubaki (U.S. Tsubaki) |
| Model / Part Number | H50B24 |
| Product Type | Roller Chain Sprocket |
| Chain Number | #50 |
| Chain Pitch | 5/8 in (0.625 in) |
| Number of Teeth | 24 |
| Hub Type | B-Hub (hub extension on one side) |
| Hardened Teeth | Yes (induction or flame hardened) |
| Outside Diameter (OD) | 5.120 in |
| Pitch Diameter | 4.788 in |
| Hub Diameter | 3.00 in |
| Length Through Bore (LTB) | 1-1/4 in |
| Minimum Bore Diameter | 3/4 in |
| Maximum Bore Diameter | 1-3/8 in |
| Bore Type | Plain Bore (stock/reborable) |
| Number of Strands | Single |
| Material | Carbon Steel |
| Standard | ANSI |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Tsubaki
Part Number H50B24
Shelf GS-38
Model H50B24
MPN H50B24
Type Roller Chain Sprocket
