Product Description

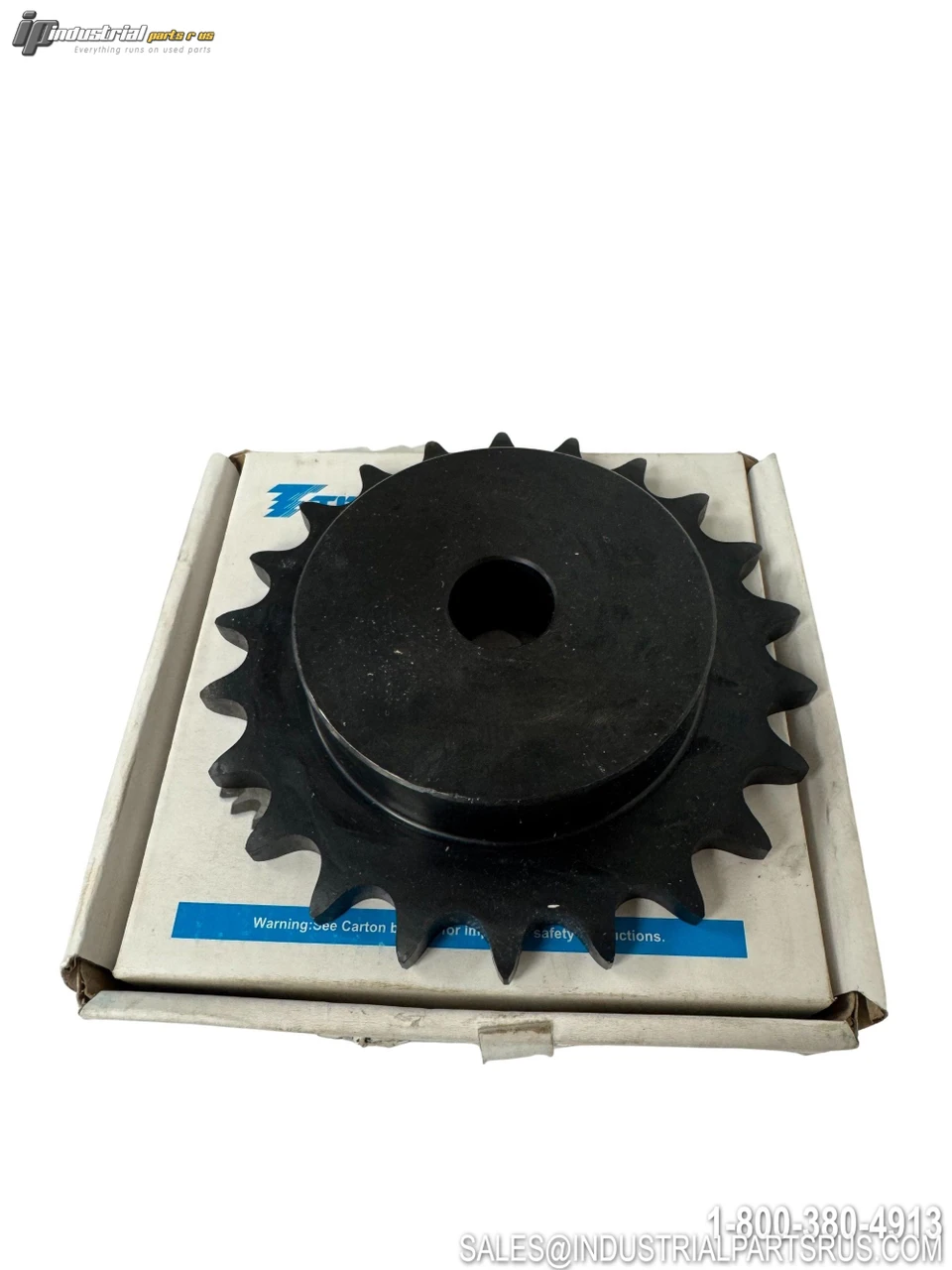

The Tsubaki H50B22 is a professional-grade roller chain sprocket designed for #50 chain applications with 22 hardened teeth. This B-style hub sprocket features a 3/4 inch bore diameter and 4.720 inch outside diameter, manufactured from 1045 cold rolled carbon steel for superior durability and performance in industrial power transmission systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Tsubaki |
| Model/Part Number | H50B22 |
| Chain Number | #50 |
| Number of Teeth | 22 |
| Hub Type | B-Style (hub one side) |
| Bore Diameter | 3/4 inch |
| Outside Diameter | 4.720 inches |
| Pitch Diameter | 4.392 inches |
| Chain Pitch | 5/8 inch |
| Hub Diameter | 3.0 inches |
| Length Through Bore | 1.0 inch |
| Material | 1045 Cold Rolled Carbon Steel |
| Weight | 2.56 lbs |
| Hardened Teeth | Yes (Rockwell C35 minimum) |
| Number of Strands | Single |
| Standards Compliance | ANSI |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Tsubaki
Part Number H50B22
Shelf K-60
Model H50B22
MPN H50B22
Type Sprocket
