Product Description

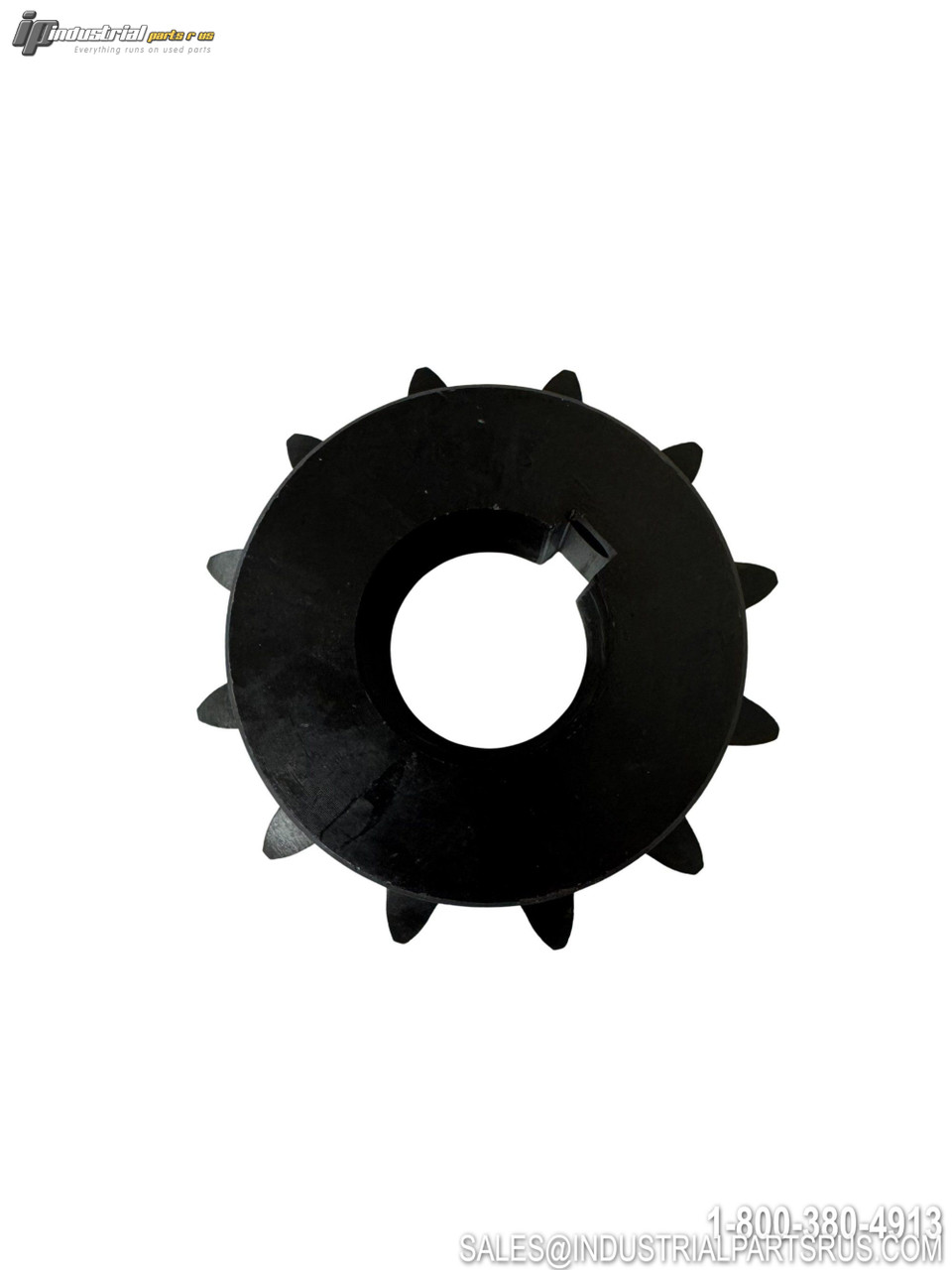

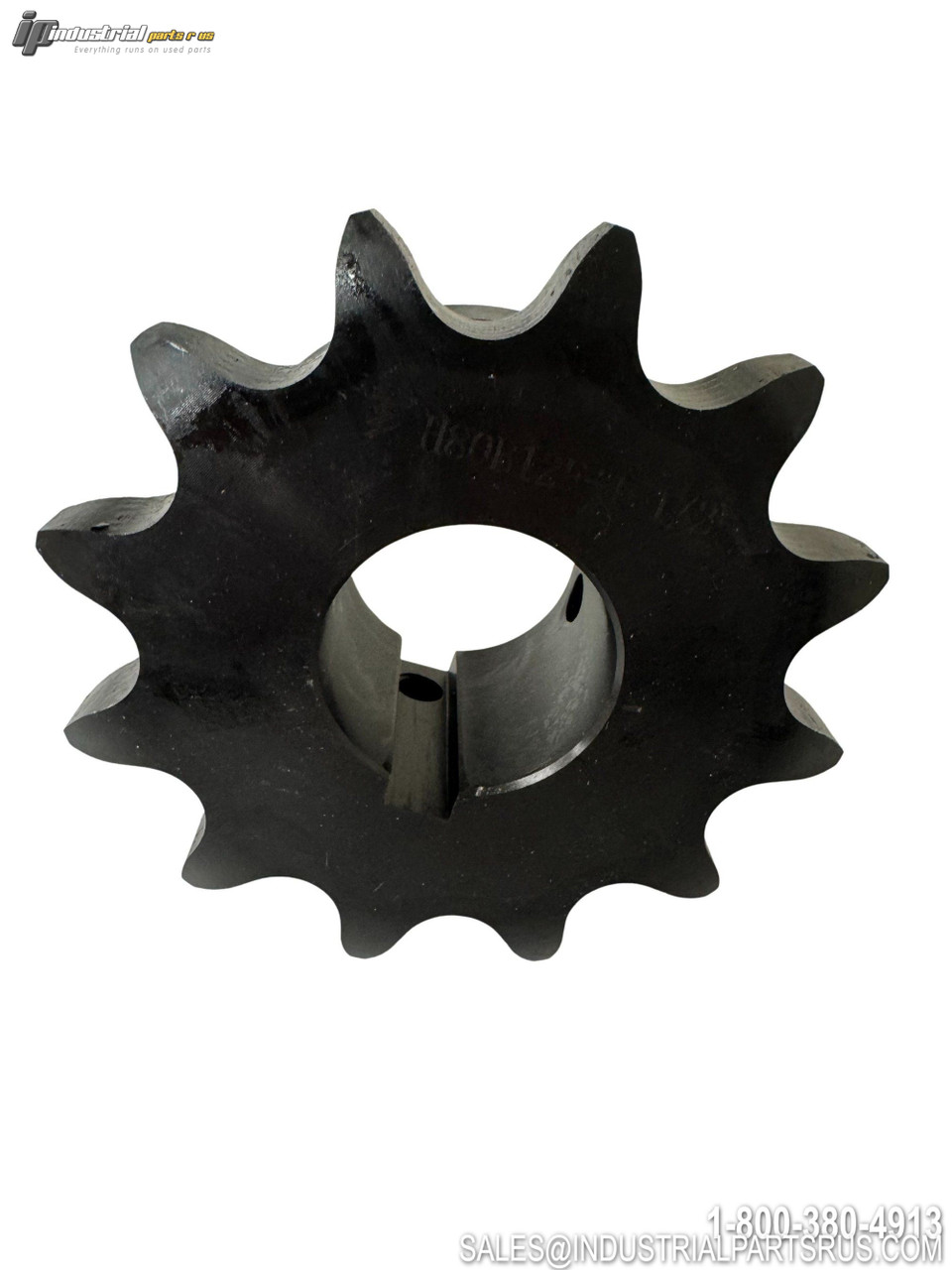

The Tsubaki H80B12F 1-1/2 is a hardened-tooth, finished-bore roller chain sprocket designed for use with #80 (1" pitch) single-strand roller chain. It features a Type B hub (hub extension on one side), 12 teeth, and a precision-finished 1-1/2" bore complete with a standard keyway and two set screws for secure shaft mounting. Manufactured from 1045 cold-rolled carbon steel with hardened teeth, this sprocket is engineered for extended wear life, resistance to abrasive conditions, and dependable performance in high-load and high-speed power transmission applications. Designed for horizontal shaft orientation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Tsubaki (U.S. Tsubaki) |
| Model / Part Number | H80B12F 1-1/2 |
| Product Type | Roller Chain Sprocket |
| Chain Size (ANSI No.) | #80 |
| Chain Pitch | 1" (1.000 in) |
| Number of Teeth | 12 |
| Hub Type | Type B — Hub extension on one side |
| Bore Type | Finished Bore (keyway + 2 set screws) |
| Bore Diameter | 1-1/2" (1.500 in) |
| Outside Diameter | 4.332 in |
| Pitch Diameter | 3.864 in |
| Hub Diameter | 3-1/8" (3.125 in) |
| Length Through Bore (LTB) | 1-9/16" (1.5625 in) |
| Keyway Size (standard ANSI for 1-1/2" bore) | 3/8" x 3/16" |
| Number of Set Screws | 2 |
| Hardened Teeth | Yes (H = Hardened) |
| Number of Strands | Single |
| Material | 1045 Cold Rolled Carbon Steel |
| Finish | Black Oxide |
| Standard | ANSI / ISO 9001 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686222
Manufacturer Tsubaki
Part Number H80B12F 1-1/2
Shelf K-70
Model H80B12F 1-1/2
MPN H80B12F 1-1/2
Type Roller Chain Sprocket
