Product Description

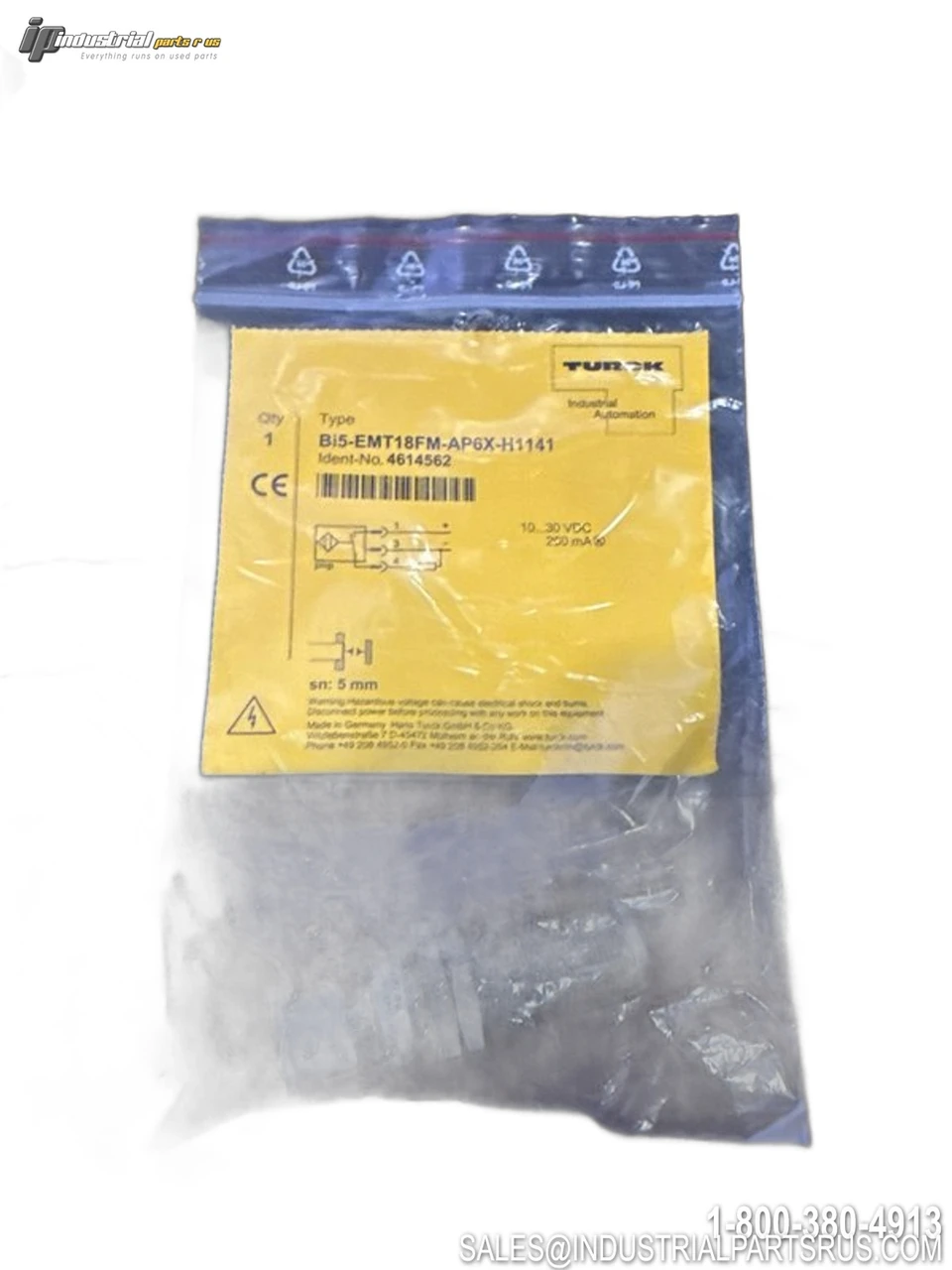

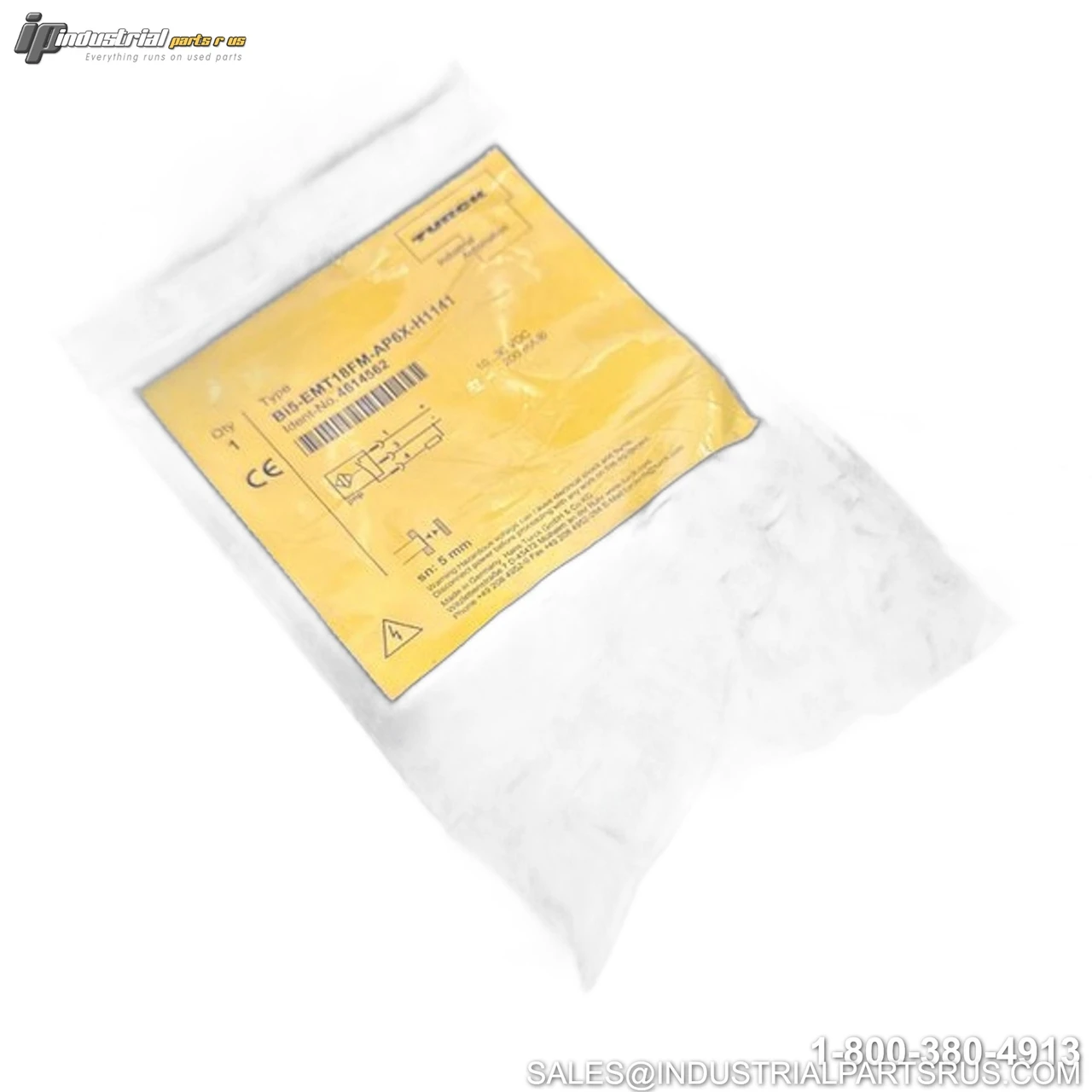

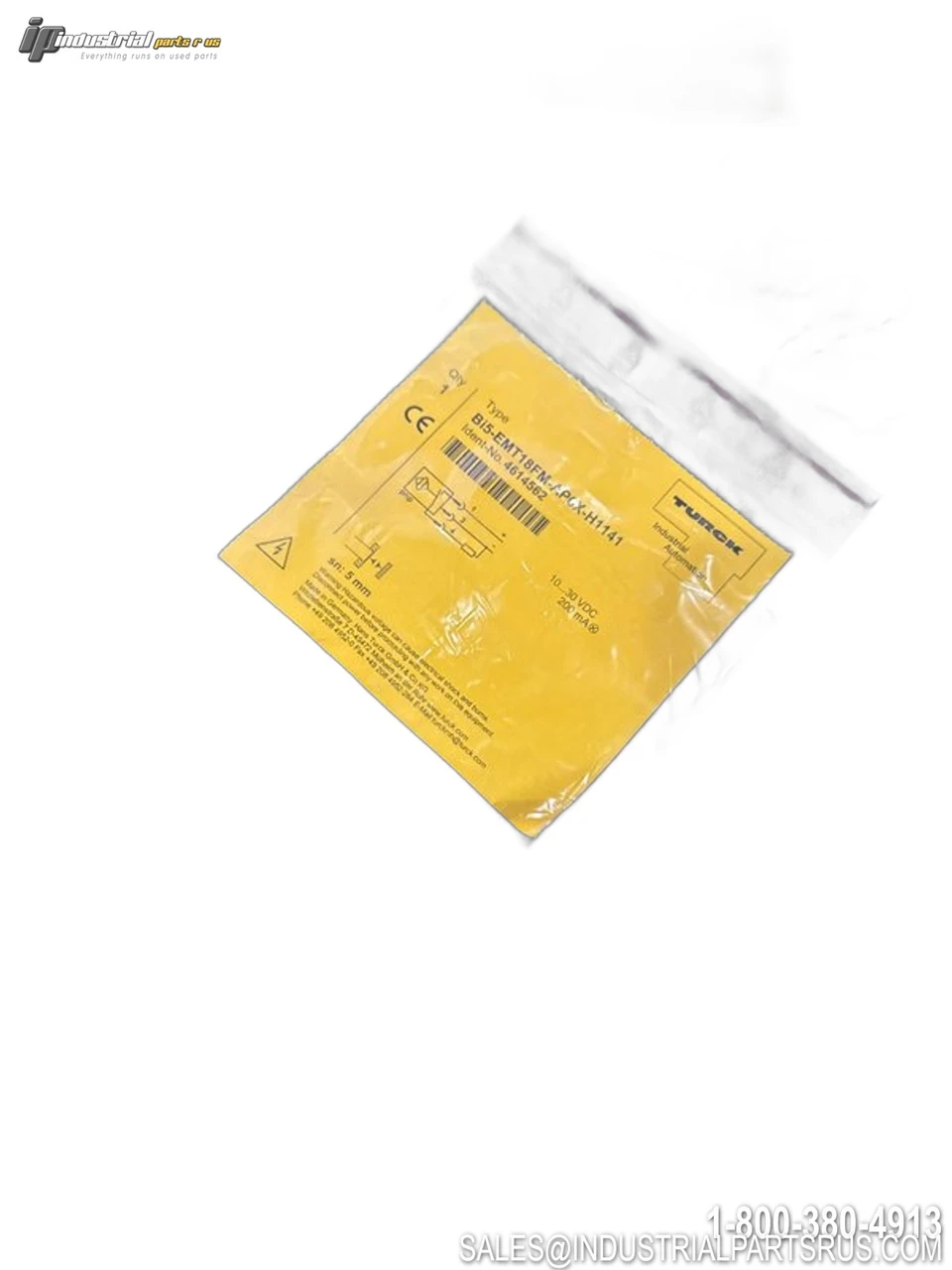

The Turck BI5-EMT18FM-AP6X-H1141 is a cylindrical inductive proximity sensor featuring an M18 threaded barrel with flush (embeddable) mounting, designed for non-contact detection of metal objects using a high-frequency electromagnetic field. It delivers a 3-wire PNP normally open (NO) output with a 5mm rated sensing distance and an actual sensing radius of ≤ 4.05mm (0.81 × Sn), operating on 10–30VDC and rated to 200mA. The sensor connects via an M12 Eurofast 4-pin male connector and is protected to IP67 for use in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model / Part Number | Bi5-EMT18FM-AP6X-H1141 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range (Nominal) | 5 mm |
| Mounting Style | Flush (Embeddable) |
| Housing Style | Cylindrical Threaded Barrel, M18 x 1, Flat Face |
| Housing Material | Stainless Steel, 1.4301 (AISI 304) |
| Active Face Material | Plastic, PA12-GF30 |
| Operating Voltage | 10–30 VDC |
| Rated Output Current | 200 mA (max) |
| No-Load Current | ≤ 15 mA |
| Residual (Leakage) Current | ≤ 0.1 mA |
| Voltage Drop at Rated Current | ≤ 1.8 V |
| Output Type | 3-Wire, PNP, Normally Open (NO) |
| Switching Frequency | 0.5 kHz (500 Hz) |
| Connection Type | 4-Pin M12 x 1 Eurofast Male Connector |
| Hysteresis | 3–15% |
| Repeat Accuracy | ≤ 2% of Full Scale |
| Temperature Drift | ≤ ±10% |
| Isolation Test Voltage | 0.5 kV |
| Short-Circuit Protection | Yes — Cyclic |
| Reverse Polarity Protection | Yes — Complete |
| Wire Break Protection | Yes |
| Switching State Indicator | LED, Yellow |
| IP Rating | IP67 |
| Ambient Temperature Range | -25°C to +70°C |
| Overall Length | 52 mm |
| Max Housing Nut Torque | 25 Nm |
| Correction Factors | St37=1.0; Al=0.3; Stainless Steel=0.7; Brass=0.4 |
| Supply Ripple (Uss) | ≤ 10% UBmax |
| Manufacturer | Turck, Inc. |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Output Type PNP
Sensor Type Inductive
Shelf M-2
Model BI5-EMT18FM-AP6X-H1141
MPN BI5-EMT18FM-AP6X-H1141
Type Inductive Proximity Sensor
GTIN 679523686161
Operating Distance 5 mm
Full Load Amps ≤ 0.1 mA
Manufacturer Turck
Enclosure Type IP67
Part Number BI5-EMT18FM-AP6X-H1141
