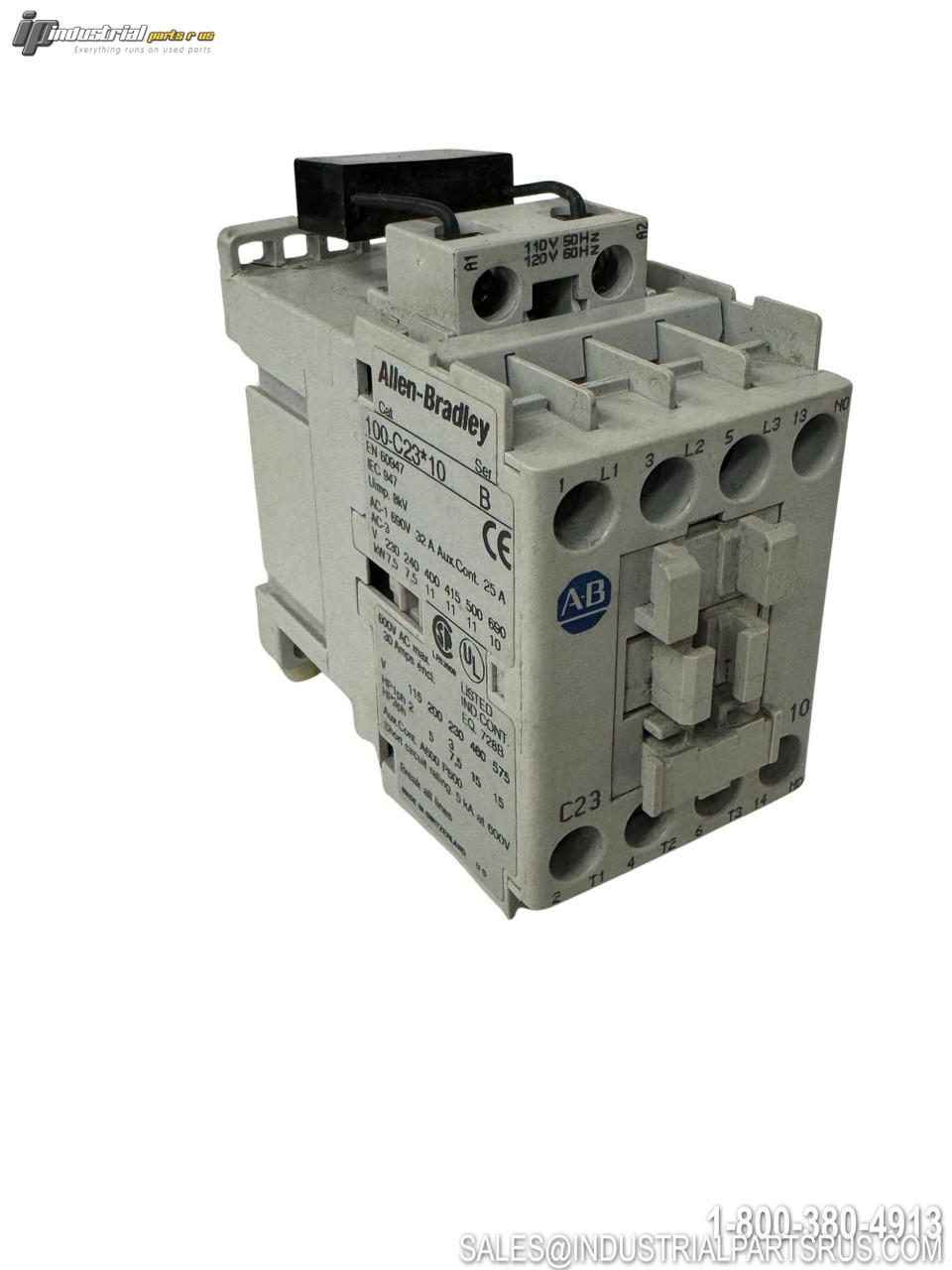

Product Description
The Allen-Bradley 100-C23*10 is a 3-pole IEC contactor from the Bulletin 100-C series designed for motor control and industrial switching applications. This contactor is rated for 23A AC-3 duty and includes one normally open auxiliary contact factory-installed. The asterisk (*) indicates that a coil voltage code must be selected to complete the catalog number.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 100-C23*10 |
| Type | IEC Contactor |
| Bulletin Series | 100-C |
| Frame Size | 23 |
| Poles | 3 |
| Current Rating (AC-3) | 23A |
| Current Rating (AC-1) | 32A |
| HP Rating 230V | 7.5 |
| HP Rating 460V | 15 |
| Auxiliary Contact | 1 NO (10 suffix) |
| Coil Voltage | See label - requires selection |
| Terminal Type | Screw terminals |
| Mounting | DIN Rail, Panel Mount |
| Operating Temperature | -25 to +60°C |
| IEC Standard | IEC 60947-4-1 |
| Auxiliary Contact Mounting | Left side only |
| Electrical Life (AC-3) | See technical data |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Mounting Style DIN Rail, Panel Mount
Current Rating 23A
Full Load Amps 23A
Manufacturer Allen-Bradley
Part Number 100-C23*10
Series 100-C
Shelf C-14
Model 100-C23*10
Coil Voltage See label
Horsepower 7.5 HP @ 230V, 15 HP @ 460V
MPN 100-C23*10
Type Contactor
