Product Description

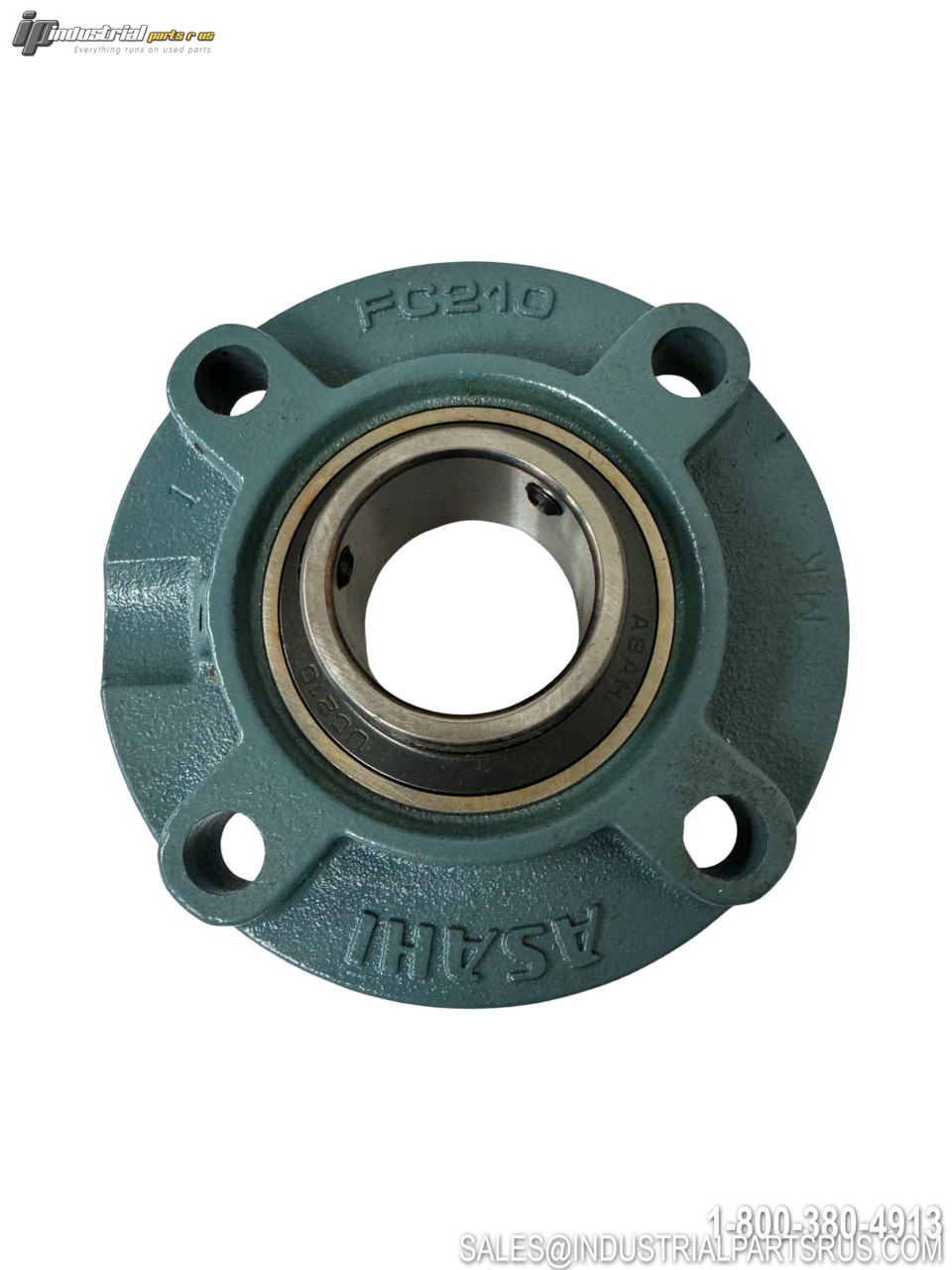

The Asahi FC210 is a 4-bolt round spigotted flange mount pillow block bearing housing designed for insert bearings with 50mm bore diameter. This cast iron housing provides reliable support and protection for insert bearings while simplifying installation and maintenance procedures.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Asahi |
| Model/Part Number | FC210 |
| Product Type | Pillow Block |
| Mounting Type | 4-Bolt Flange |
| Housing Material | Cast Iron |
| Outside Dimension | 165mm |
| Spigot Diameter | 110mm |
| Bolt Hole Size | 16mm |
| Bolt Spacing Center to Center | 97.6mm |
| Bolt Pitch Diameter | 138mm |
| Compatible Shaft Diameter | 50mm |
| Weight | 2.81 kg |
| Compatible Bearing Type | Insert Bearing |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material Stainless Steel
Manufacturer Asahi
Shaft Diameter 50mm
Part Number FC210
Shelf A-3
Bore Diameter 50 mm
Model FC210
MPN FC210
Type Pillow Block
