Product Description

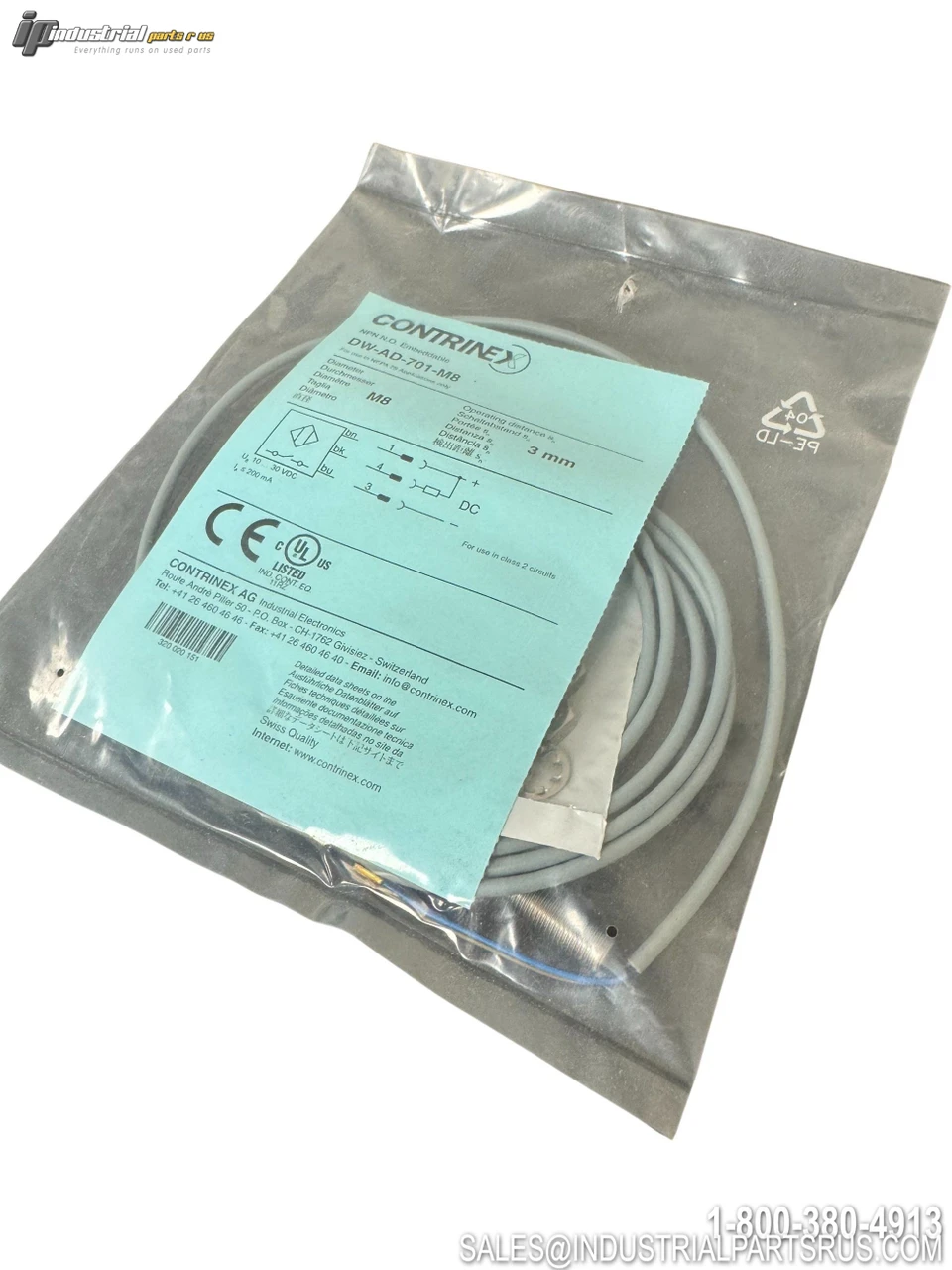

The Contrinex DW-AD-701-M8 is an EXTREME series full stainless steel inductive proximity sensor featuring an M8 threaded barrel housing with a 3mm sensing range, NPN Normally Open (NO) output, and a 3-wire DC interface. Constructed from one-piece V2A/AISI 303 stainless steel with a hermetically sealed cable entry, it is corrosion-resistant, impervious to oil, and pressure-resistant to 100 bar. This sensor is rated IP68 and IP69K, making it ideal for the most demanding industrial environments including washdown, food processing, and high-pressure applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Contrinex |
| Model / Part Number | DW-AD-701-M8 |
| Series / Family | EXTREME (DW-AD-70x) |
| Sensor Type | Inductive Proximity Sensor |
| Housing Size / Thread | M8 |
| Sensing Distance (Sn) | 3 mm |
| Standard Target | 9 x 9 x 1 mm, FE360 Steel |
| Output Type | NPN, Normally Open (NO) |
| Wiring | 3-Wire DC |
| Supply Voltage Range | 10 … 30 VDC |
| Max Output Current | ≤ 200 mA |
| No-Load Power Consumption | ≤ 10 mA |
| Residual Current | ≤ 0.1 mA |
| Repeat Accuracy | ≤ 0.12 mm |
| Switching Frequency (max) | ≤ 1200 Hz |
| Mounting Style | Embeddable (Flush / Shielded) |
| Housing Material | Stainless Steel V2A / 1.4305 / AISI 303 |
| Sensing Face Material | Stainless Steel V2A |
| Enclosure Rating | IP68 / IP69K |
| Pressure Resistance | 100 bar |
| Ambient Operating Temperature | -25°C … +85°C |
| Connection Type | PUR Cable, 2 m, 3-wire |
| Max Cable Length | ≤ 300 m |
| Max Tightening Torque | 8 Nm |
| Residual Ripple | ≤ 20% UB |
| Short-Circuit Protection | Yes |
| Voltage Reversal Protection | Yes |
| LED Indicator | Yes (process indicator) |
| Compliance Standard | IEC 60947-5-2 |
| Weight | 42 g |
| Contrinex Part Number | 320-020-151 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type NPN
Sensor Type Inductive
Operating Distance 3 mm
Full Load Amps ≤ 0.1 mA
Manufacturer Contrinex
Enclosure Type IP68 / IP69K
Part Number DW-AD-701-M8
Shelf K-50
Model DW-AD-701-M8
MPN DW-AD-701-M8
Type Inductive Proximity Sensor
