Product Description

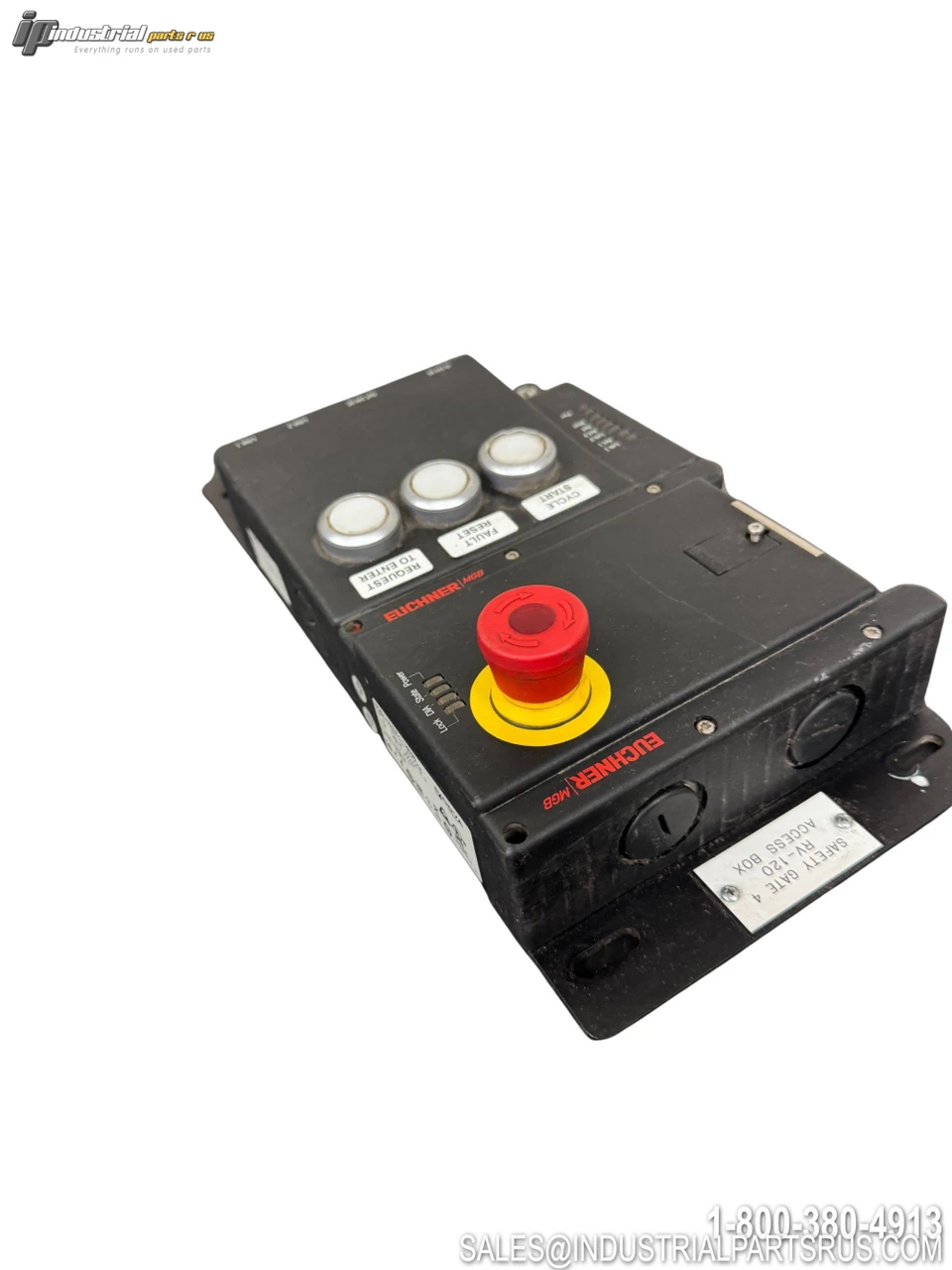

The Euchner MGB-L1B-E1A-L-128326 (Order No. 128326) is a Multifunctional Gate Box (MGB) locking module designed for safety door protection on industrial machines and installations. It features guard locking by spring force (closed-circuit current principle) with integrated guard lock monitoring, an illuminated emergency stop per ISO 13850, and three illuminated pushbuttons, all communicating via EtherNet/IP with CIP Safety protocol. The unit is pre-assembled on a mounting plate with M12 plug connections and achieves the highest safety ratings of Category 4 / Performance Level e (PLe) per EN ISO 13849-1 and SIL 3 per EN IEC 62061.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Euchner |
| Model / Part Number | MGB-L1B-E1A-L-128326 |
| Official Euchner Designation | MGB-L1B-EIA-L-128326 (Order No. 128326) |
| Product Family | Multifunctional Gate Box (MGB) EtherNet/IP |
| Product Type | Safety Interlock / Guard Locking Module |
| Guard Locking Principle | Closed-circuit current principle (spring force locked, solenoid unlocks) |
| Operating Voltage (L1) | 24 V DC -15% / +10% (reverse polarity protected, PELV, regulated, ripple <5%) |
| Auxiliary Voltage (L2) | 24 V DC -15% / +10% (not required for MGB system) |
| Current Consumption | Max. 500 mA |
| Max. Feed-in Current (X1, X2) | Max. 4000 mA |
| External Fuse | Min. 1 A slow blow |
| Rated Insulation Voltage (Ui) | 75 V |
| Rated Impulse Voltage (Uimp) | 0.5 kV |
| Safety Class | III |
| Communication Protocol | EtherNet/IP with CIP Safety |
| Network Connection (X3, X4) | M12, D-coded, screened (EtherNet/IP, min. Cat. 5e) |
| Power Connection (X1, X2) | M12 Power, A-coded |
| Installation Orientation | Door hinge DIN left (L variant) |
| Number of Pushbuttons | 3 illuminated pushbuttons (1NO each) |
| Emergency Stop | Illuminated, per ISO 13850 (2PD switching element) |
| Transponder Coding | Unicode |
| Safety Category | Category 4 |
| Performance Level | PL e (EN ISO 13849-1) |
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
| PFH_D (Guard Locking Control) | 4.91 x 10⁻⁹ |
| PFH_D (Emergency Stop) | 3.05 x 10⁻⁹ |
| Mission Time | 20 years |
| Locking Force (F_Zh) | 2000 N |
| Secured Switch-off Distance (s_ar) | 20 mm (sliding door only, with deactivated guard lock monitoring) |
| Degree of Protection | IP54 |
| Ambient Temperature | -20 ... +55 °C (at 24 V DC) |
| Degree of Contamination | 3 (per EN 60947-1) |
| Switching Frequency | 0.25 Hz |
| Housing Material | Fiber glass reinforced plastic; die-cast zinc, nickel-plated; stainless steel |
| EMC Standard | EN 61000-4, EN 61326-3-1 |
| Mounting | Pre-assembled on mounting plate |
| Gross Weight | 3.628 kg |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style Panel Mount
Current Rating 500 mA
Full Load Amps 500 mA max
Manufacturer Euchner
Enclosure Type IP54
Part Number MGB-L1B-E1A-L-128326
Shelf K-10
Model MGB-L1B-E1A-L-128326
Coil Voltage 24V DC
MPN MGB-L1B-E1A-L-128326
Type Safety Interlock
