Product Description

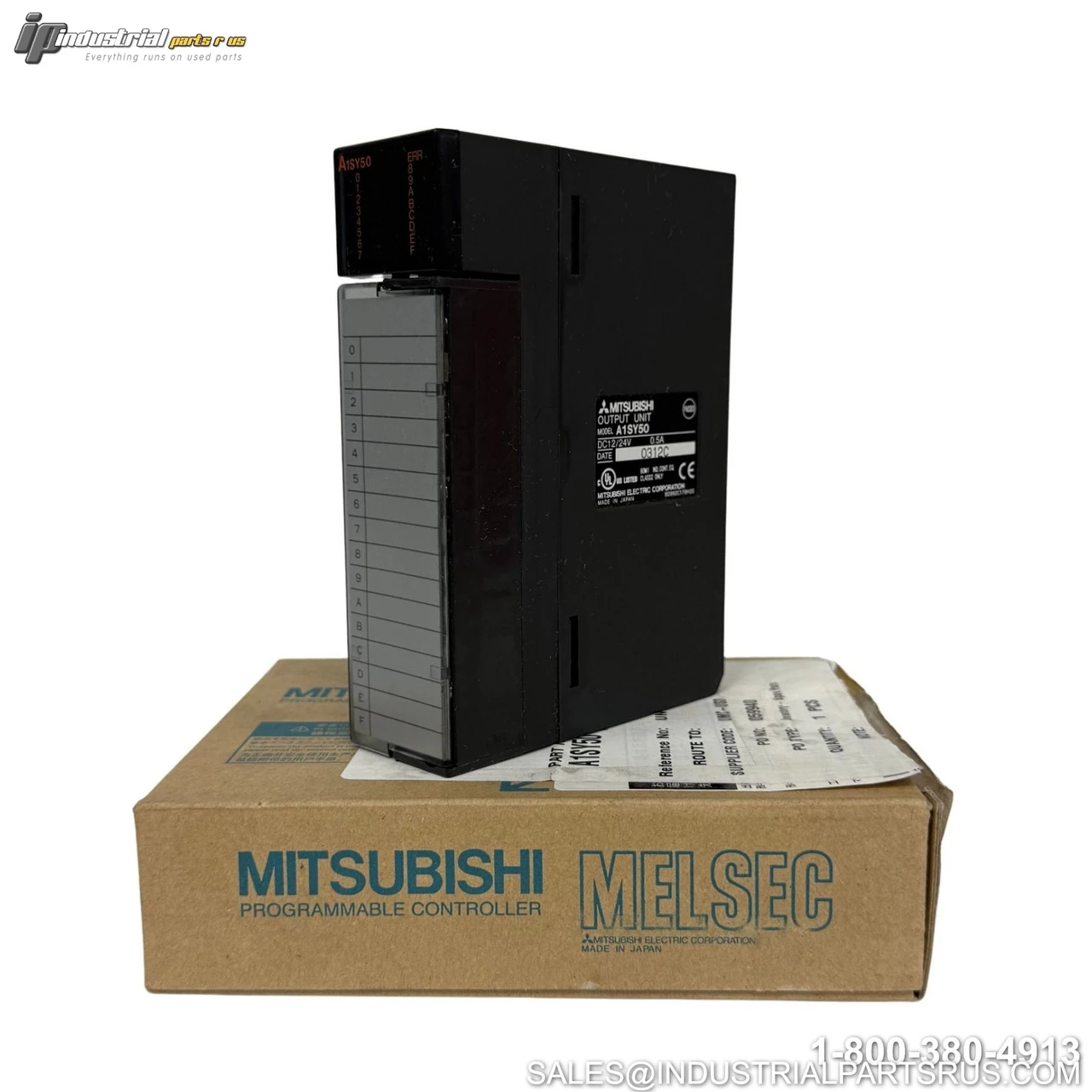

The Mitsubishi Electric A1SY50 is a 16-point transistor (sink type) output module designed for use with the MELSEC-A Series programmable controller systems. It uses photocoupler isolation between the PLC backplane and the output field devices, and supports a rated load voltage of 12/24 VDC with a maximum load current of 0.5 A per point and 2 A per common. The module connects via an 18-point screw terminal block and features LED indicators to show the ON state of each output point.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | A1SY50 |
| Product Family / Series | MELSEC-A (AnS Series) |
| Module Type | Transistor Output Module (Sink Type) |
| Signal Type | Digital |
| Controller Platform | MELSEC-A |
| Number of Output Points | 16 Points |
| Isolation Method | Photocoupler |
| Rated Load Voltage | 12/24 VDC |
| Operating Voltage Range | 10.2 to 30 VDC (Peak: 30 VDC) |
| Max. Load Current | 0.5 A/point, 2 A/common |
| Max. Allowed Rush Current | 4 A, 10 ms or less |
| Leakage Current (OFF State) | 0.1 mA or less |
| Max. Voltage Drop (ON State) | 0.9 VDC (TYP @ 0.5A), 1.5 VDC (MAX @ 0.5A) |
| Response Time (OFF → ON) | 2 ms or less |
| Response Time (ON → OFF) | 2 ms or less |
| External Power Supply Voltage | 12/24 VDC (10.2 to 30 VDC) |
| External Power Supply Current | 60 mA (TYP @ 24 VDC/common) |
| Internal Current Consumption (5 VDC) | 120 mA (TYP, all points ON) |
| Insulation Withstand Voltage | 500 VAC |
| Noise Immunity | 500 VAC |
| Operating Indicator | LED (ON state indicated per point) |
| Connection Type | Screw Terminal Block (18-point) |
| Points per Common (Commons) | 8 points/common (2 commons: COM1, COM2) |
| I/O Points Occupied | 16 points |
| Operating Temperature | 0°C to 55°C |
| Weight | 0.21 kg (0.46 lb) |
| Dimensions (W × H × D) | 40 × 130 × 100 mm (approx. 2.0 × 5.5 × 4.0 in) |
