Product Description

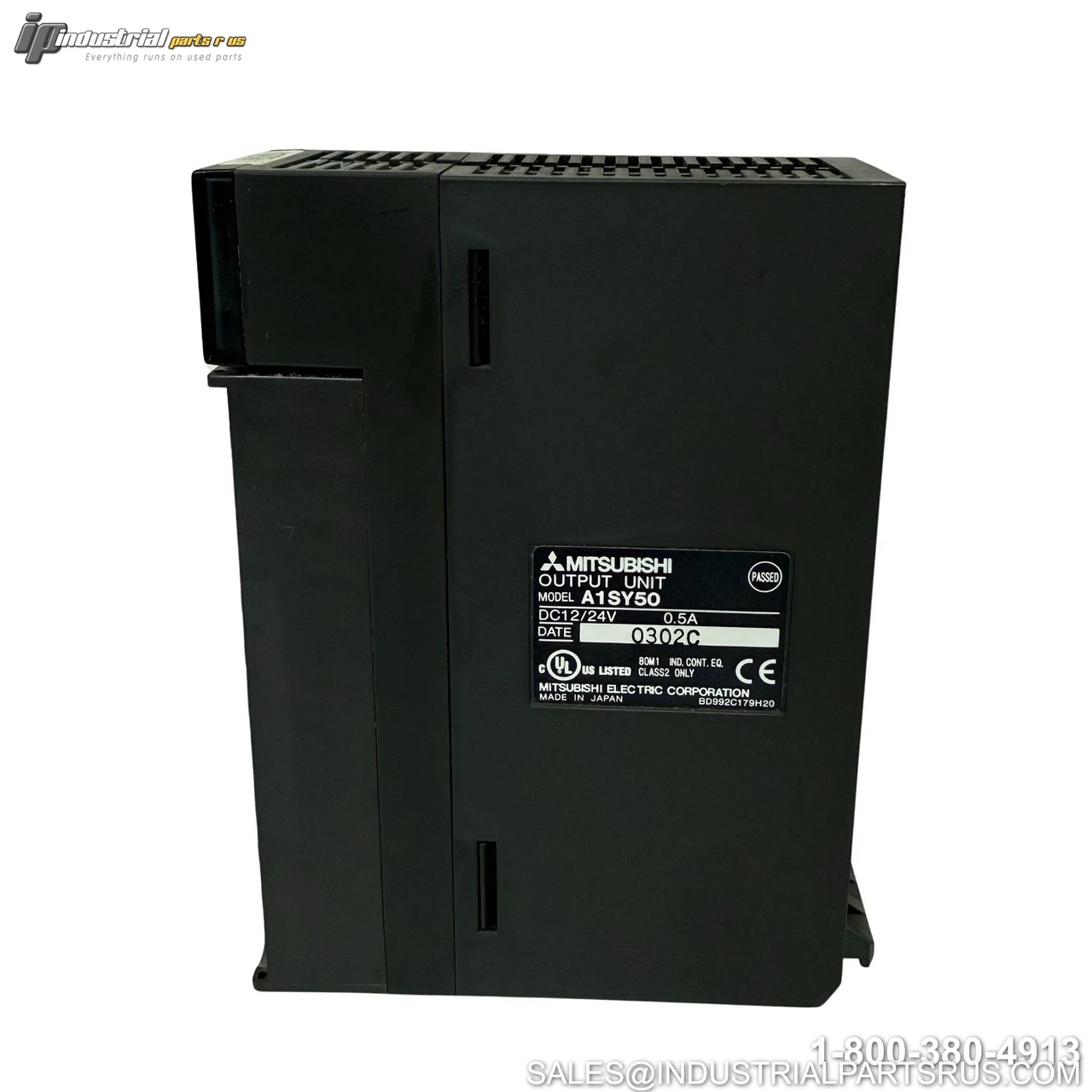

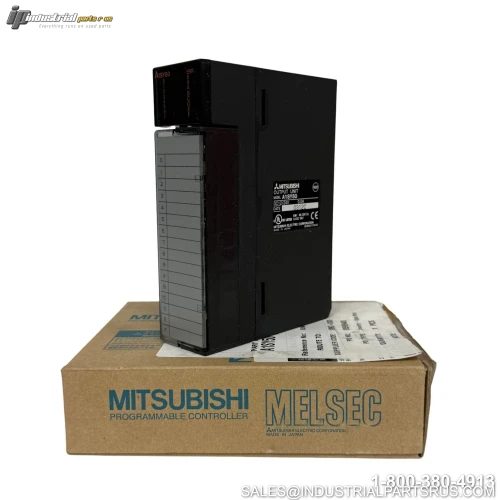

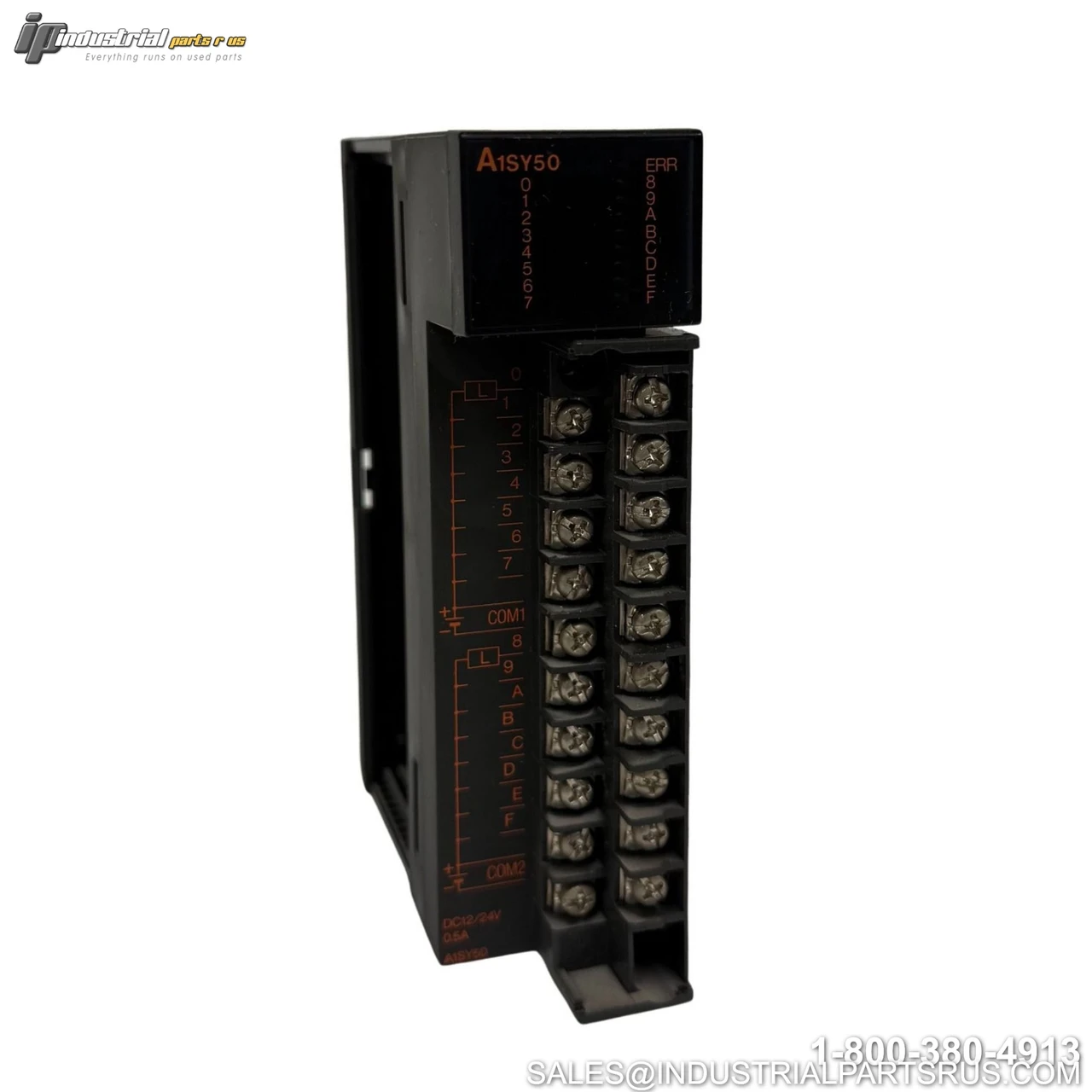

The Mitsubishi Electric A1SY50 is a 16-point transistor (sink type) digital output module designed for use in the MELSEC-AnS series programmable controller systems. It provides photocoupler-based isolation between the PLC's internal logic and external load circuits, supporting rated load voltages of 12 VDC or 24 VDC and a maximum load current of 0.5 A per point (2 A per common). The module connects to field devices via a screw terminal block and features LED output status indicators for each channel.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | A1SY50 |
| Product Family / Series | MELSEC-AnS |
| Controller Platform | MELSEC-A |
| Analog / Digital | Digital |
| Module Type | Transistor Output Module (Sink Type) |
| Number of Output Points | 16 Points |
| Isolation Method | Photocoupler |
| Rated Load Voltage | 12/24 VDC |
| Operating Voltage Range | 10.2 to 30 VDC (peak voltage: 30 VDC) |
| Max. Load Current | 0.5 A/point, 2 A/common |
| Max. Allowed Rush Current | 4 A, 10 ms or less |
| Leakage Current (OFF State) | 0.1 mA or less |
| Max. Voltage Drop (ON State) | 0.9 VDC (TYP) @ 0.5 A; 1.5 VDC (MAX) @ 0.5 A |
| Response Time (OFF→ON) | 2 ms or less |
| Response Time (ON→OFF) | 2 ms or less |
| External Power Supply Voltage | 12/24 VDC (10.2 to 30 VDC) |
| External Power Supply Current | 60 mA (TYP @ 24 VDC/common) |
| Internal Current Consumption (5 VDC) | 200 mA (TYP, all points ON) |
| Points per Common | 8 points/common (2 commons total) |
| Insulation Withstand Voltage | 500 VAC |
| Noise Immunity | 500 VAC |
| Connection Type | Screw Terminal Block (Terminal Row) |
| Operating Indicator | LED (ON state indicated per output point) |
| Operating Temperature | 0°C to 55°C |
| Weight | 0.21 kg (0.46 lb) |
| Dimensions (W × H × D) | Approx. 40 mm × 140 mm × 100 mm (2.0 in × 5.5 in × 4.0 in) |
| Compatible Adapter | A1ADP-XY (for use with A/QnA large-type base units) |
| Accessories | None |
