Product Description

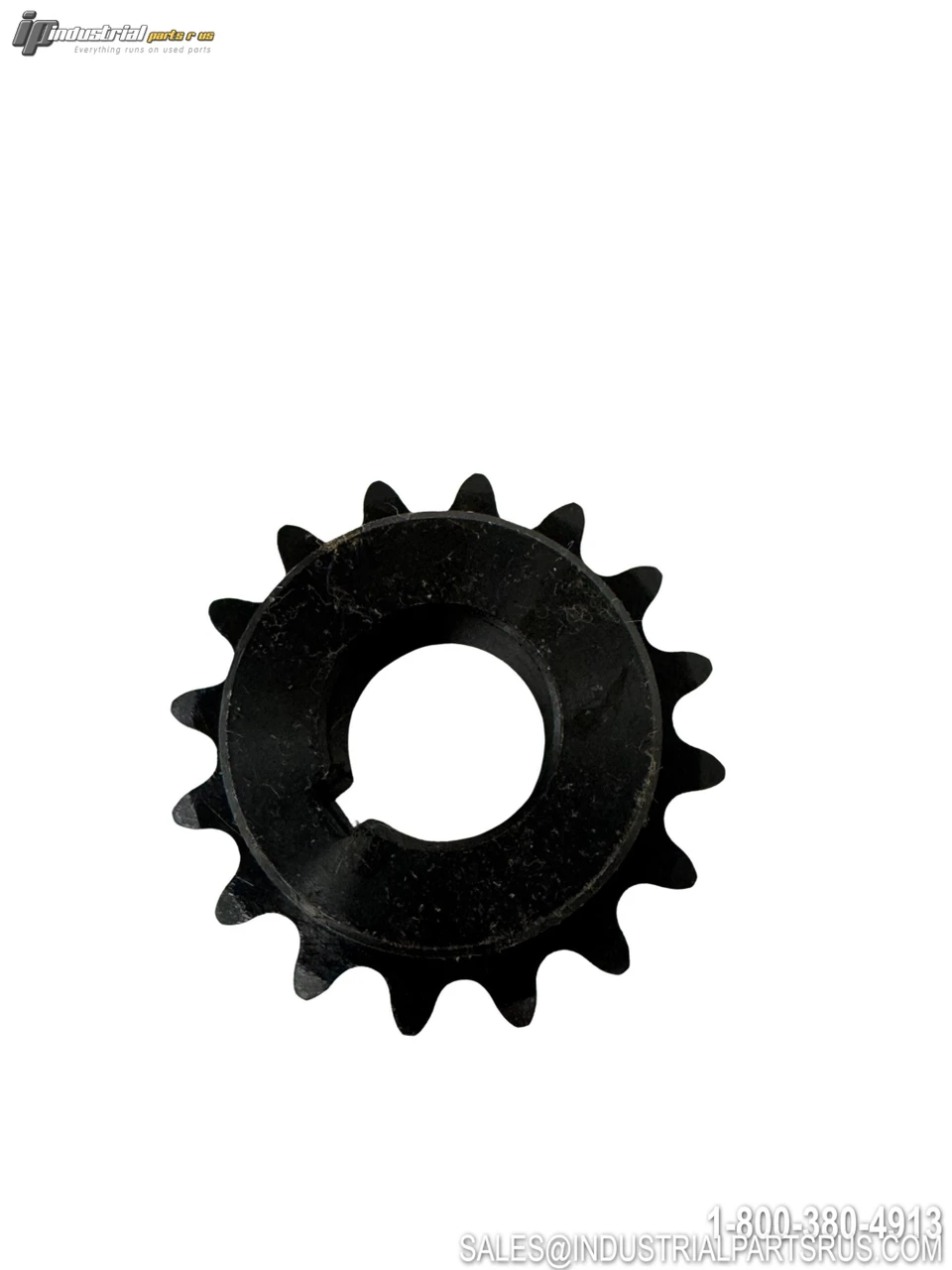

This US Tsubaki 35B16F-3/4 HT roller chain sprocket is designed for #35 chain applications with a 3/8" pitch. Features a B-hub configuration with one-sided hub projection, 16 teeth, and a 3/4" finished bore with keyway for secure shaft mounting. The HT designation indicates heat treatment for enhanced durability and wear resistance in demanding applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | US Tsubaki |
| Model/Part Number | 35B16F-3/4 HT |
| Chain Size | #35 |
| Chain Pitch | 3/8" |
| Number of Teeth | 16 |
| Hub Type | B (One Side) |
| Bore Diameter | 3/4" |
| Bore Type | Finished with Keyway |
| Material | Steel |
| Heat Treatment | Yes (HT) |
| Number of Strands | Single |
| Finish | Black Oxide |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Us Tsubaki
Part Number 35B16F-3/4 HT
Shelf A-3
Model 35B16F-3/4 HT
MPN 35B16F-3/4 HT
Type Sprocket
