Product Description

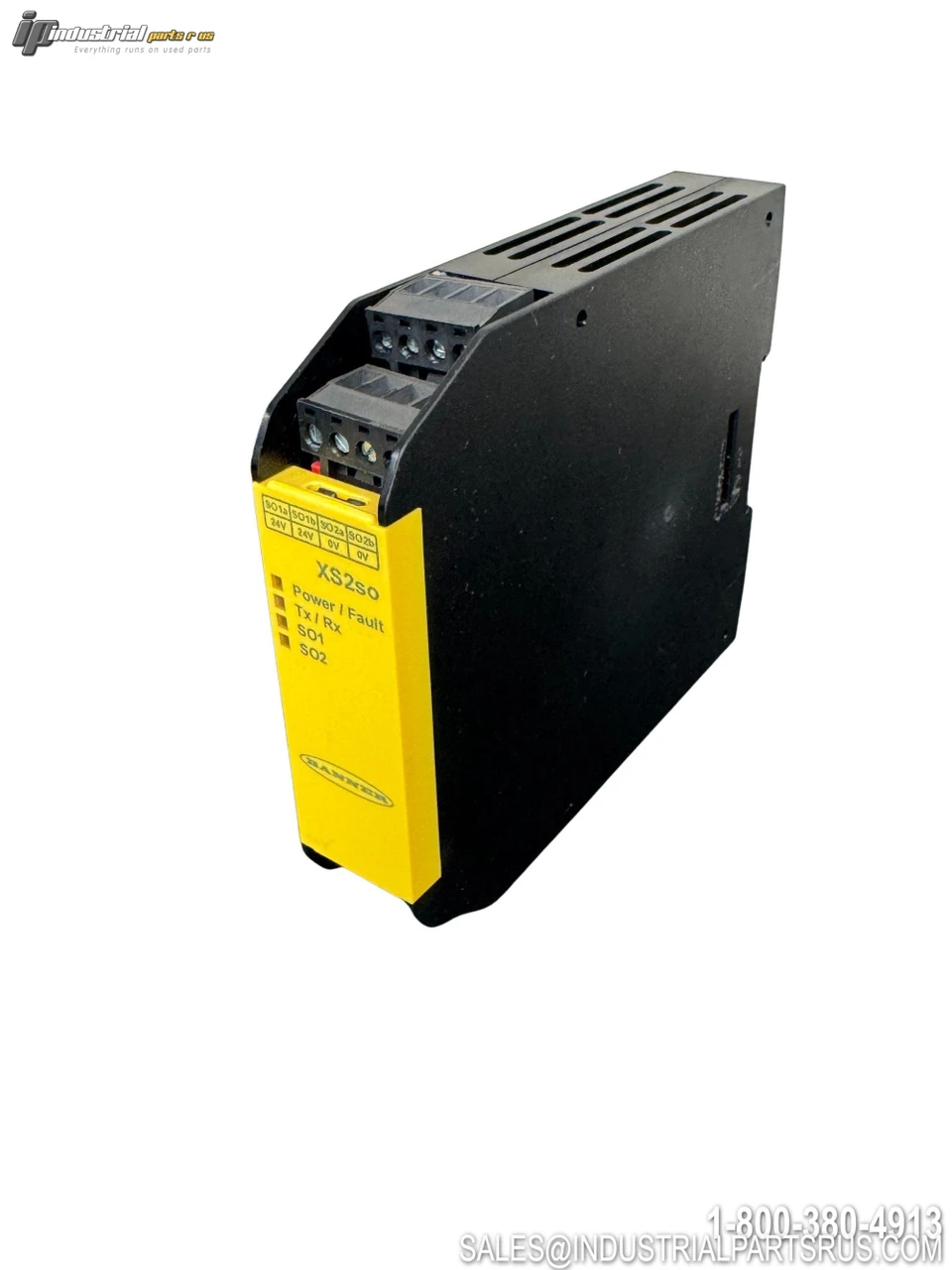

The Banner Engineering XS2SO is a Dual Channel Solid-State Safety Output Expansion Module designed for use with the XS26-2 Expandable Safety Controller series. It provides 2 pairs (4 independently controlled outputs) of PNP OSSD solid-state safety outputs rated at 0.75 A each at 24 V DC, enabling scalable machine safeguarding for a wide variety of industrial automation applications. The module mounts on a DIN rail, features removable screw terminals, and achieves the highest functional safety ratings: Category 4, PLe (EN ISO 13849) and SIL 3 (IEC 62061 / IEC 61508).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner Engineering |
| Model / Part Number | XS2SO |
| Manufacturer Part Number (Alt) | 85072 |
| Series | XS / XS26 Expandable Safety Controller |
| Product Type | Safety Controller Expansion Module – Solid-State Output |
| Compatible Base Controller | XS26-2 Safety Controllers |
| Supply Voltage | 24 V DC ±20% (19.2 V DC min / 28.8 V DC max) |
| Output Type | Solid-State PNP (OSSD) |
| Output Configuration | 2 OSSD Pairs (4 independently controlled safe outputs) |
| Safe Output Rating | 0.75 A max @ 24 V DC (1.0 V DC max drop) |
| Inrush Current | 2 A max |
| Output Off Threshold | 1.7 V DC typical (2.0 V DC max) |
| Output Leakage Current | 50 µA max with open 0 V load |
| Max Load | 0.1 µF max, 1 H max, 10 Ω max per lead |
| Non-Safe Output Configuration | Up to 4 PNP |
| Splittable Safe Output | Yes |
| Power Consumption | 3.075 A (external load maximum) |
| Safety Category Rating | Category 4 (EN ISO 13849) |
| Performance Level | PLe |
| SIL Rating | SIL 3 / SIL CL 3 (IEC 62061, IEC 61508) |
| PFH (PFHd) | 5.8 × 10⁻¹⁰ [1/h] |
| Proof Test Interval | 20 years |
| IP / Enclosure Rating | IP20 (NEMA 1); for use inside NEMA 3 (IP54) or better enclosure |
| Mounting Type | DIN Rail |
| Terminal Type | Removable Screw Terminals |
| Wire Size | 24 to 12 AWG (0.2 to 3.31 mm²) |
| Wire Strip Length | 7 to 8 mm (0.275 in to 0.315 in) |
| Tightening Torque | 0.565 N·m (5.0 in-lb) |
| Operating Temperature | 0 °C to +55 °C (32 °F to +131 °F) |
| Relative Humidity | 90% @ 50 °C |
| Dimensions (H × W × D) | 110 × 22.5 × 129 mm |
| Material | Plastic |
| Expandable | Yes |
| Vibration | 9–150 Hz at 1g occasional / 0.5g continuous (per IEC 61131-2) |
| Shock | 15 g for 11 ms, half sine, 18 shocks total (per IEC 61131-2) |
| EMC Compliance | IEC 61131-2, IEC 62061 Annex E, IEC 61326-1:2006, IEC 61326-3-1:2008 |
| Certifications | CE, cULus, UL |
| Part Status | Active |
