Product Description

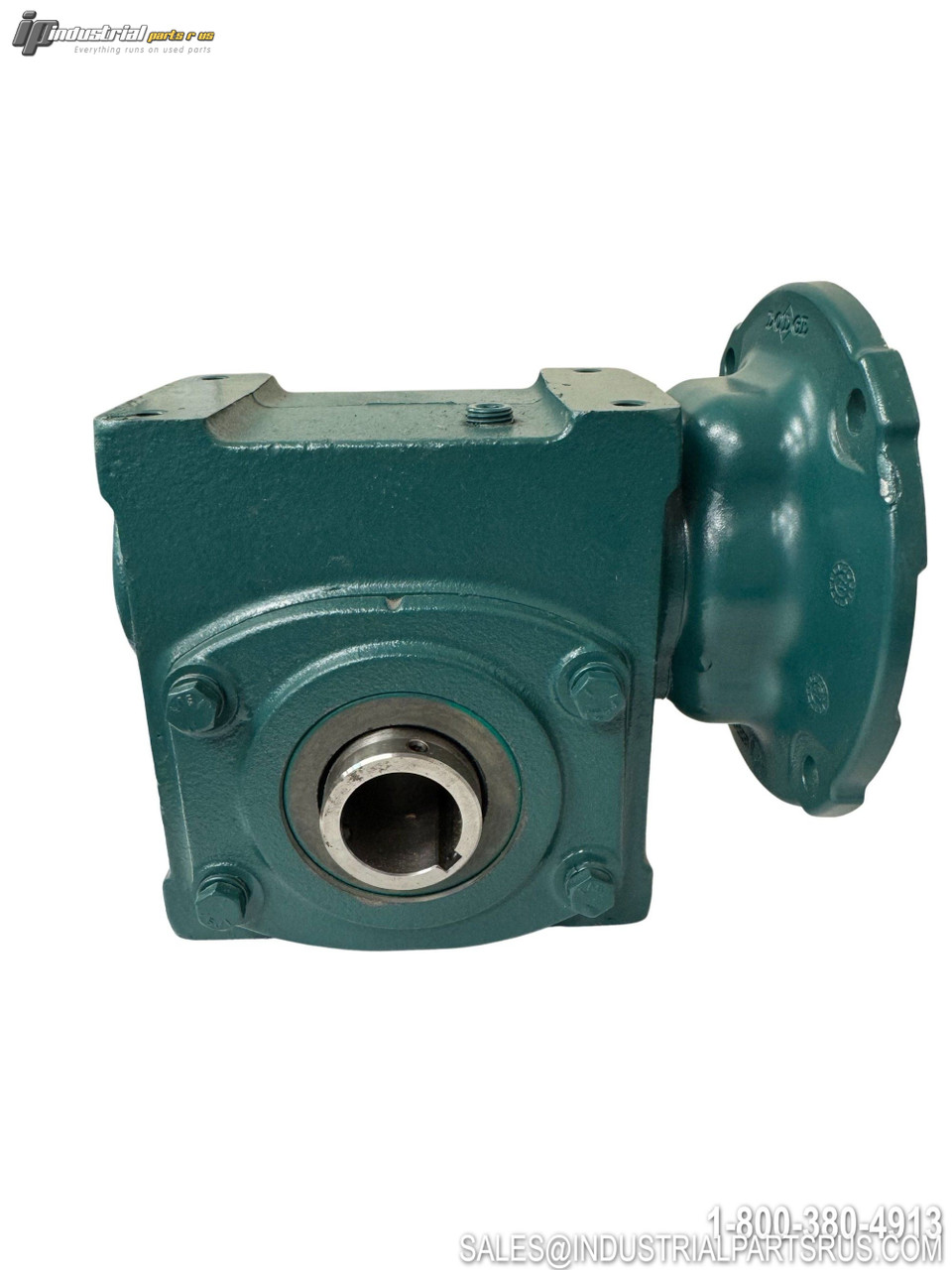

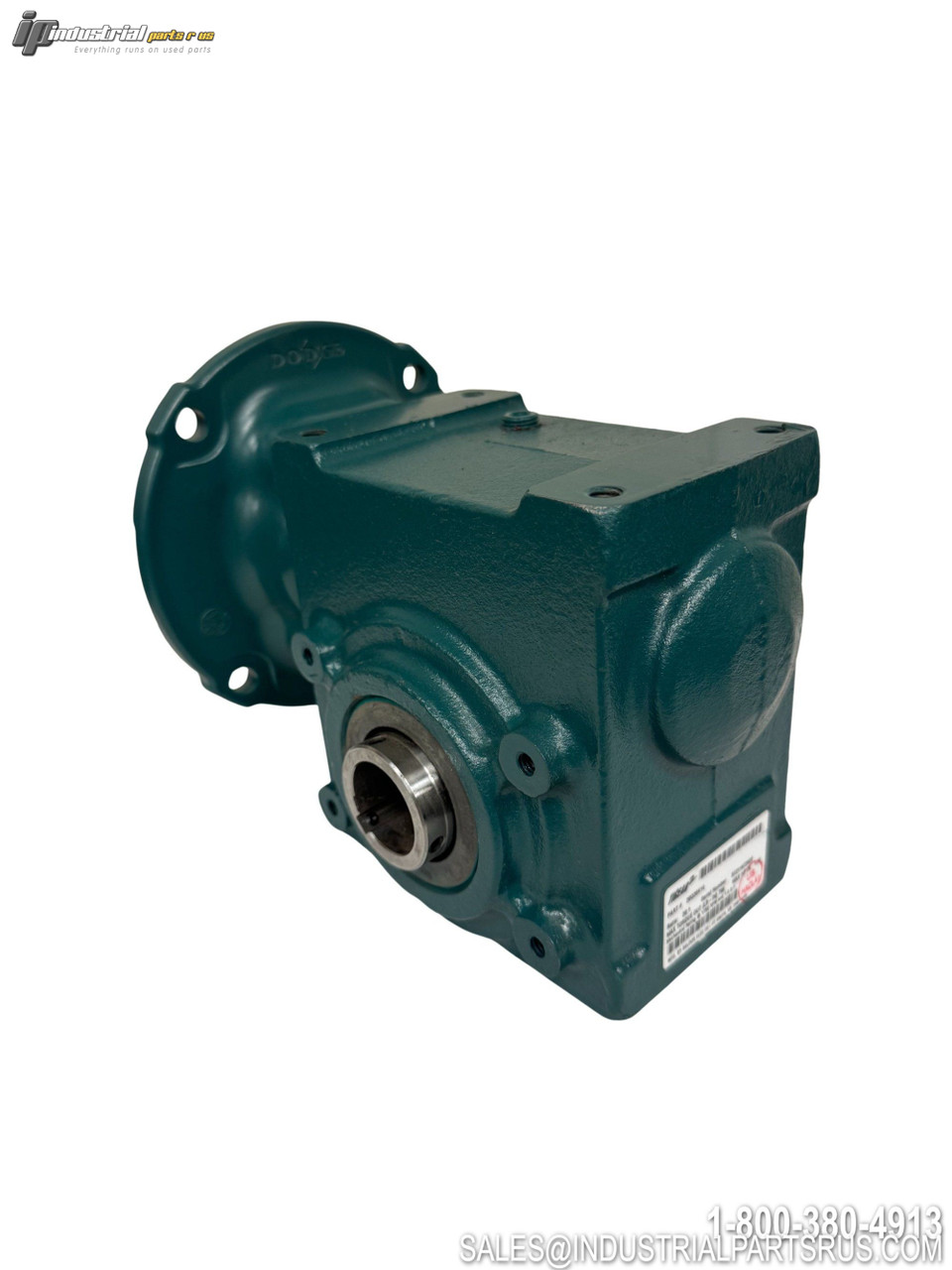

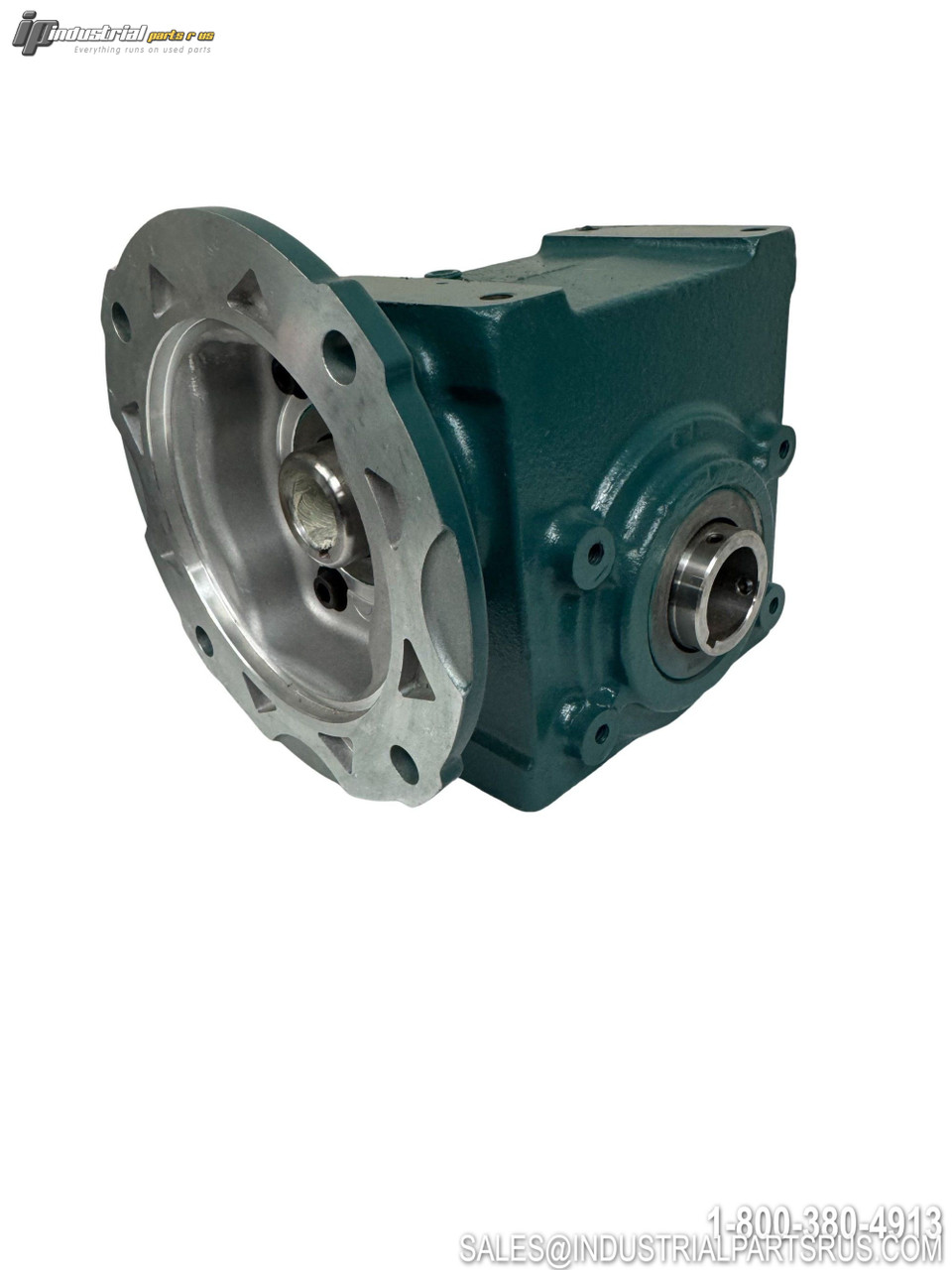

The Dodge Tigear-2 20Q20H14 is a right-angle, single-reduction worm gear speed reducer designed for direct attachment to NEMA 140TC C-face motors via its quill-style input. It features a hollow bore output shaft configuration, a rugged gray iron housing, and a factory-filled synthetic lubricant in a totally enclosed, ventless design requiring no routine oil changes. This Size 20 unit delivers a 20:1 gear ratio with 796 in-lb of output torque at 88 RPM output speed, making it well-suited for demanding industrial power transmission applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Tigear (Dodge / Baldor) |
| Model / Part Number | 20Q20H14 |
| Product Family | Tigear-2 |
| Type | Right-Angle Worm Gear Speed Reducer |
| Reducer Size | Size 20 |
| Gear Ratio | 20:1 |
| Input Type | Quill (NEMA C-Face Direct Mount) |
| Motor Frame Compatibility | 140TC |
| Output Configuration | Hollow Bore |
| Output Bore Diameter | 1.25 in |
| Input Shaft Diameter | 5/8 in (0.625 in) |
| Mechanical Input HP | 1.34 HP |
| Thermal Input HP | 1.99 HP |
| Mechanical Output HP | 1.11 HP |
| Output Torque | 796 in-lb |
| Output RPM (at 1750 RPM Input) | 88 RPM |
| Maximum Input Speed | 1750 RPM |
| Overhung Load (OHL) Capacity | 1,560 lbs |
| Center Distance | 2 in |
| Efficiency | 60 to 95% |
| Output Rotation | Left Hand |
| Keyway | 3/16 in x 3/16 in x 1-1/2 in |
| Housing Material | Gray Iron (Cast Iron) |
| Lubrication | Synthetic Oil (Factory Filled, Lifetime Lubed) |
| Enclosure / Sealing | Totally Enclosed, Ventless |
| Paint / Finish | Green (Standard) |
| Dimensions (L x W x H) | 8.6 in x 5.01 in x 7.5 in |
| Reduction Stages | Single Reduction |
| Washdown Rated | No (Standard) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Tigear
Enclosure Type Totally Enclosed, Ventless
Part Number 20Q20H14
Shelf G-9
Model 20Q20H14
MPN 20Q20H14
Type Gear Reducer
