Product Description

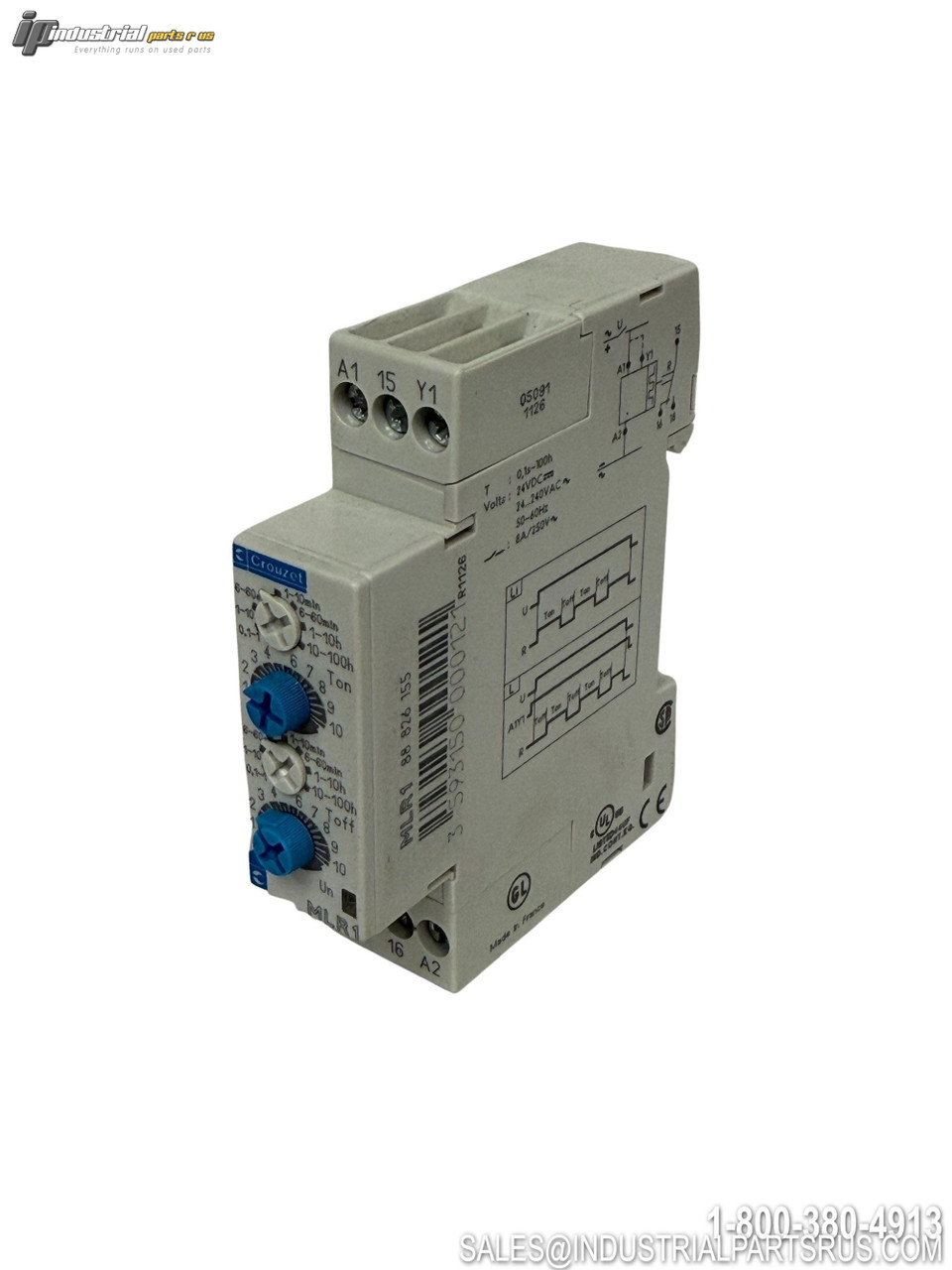

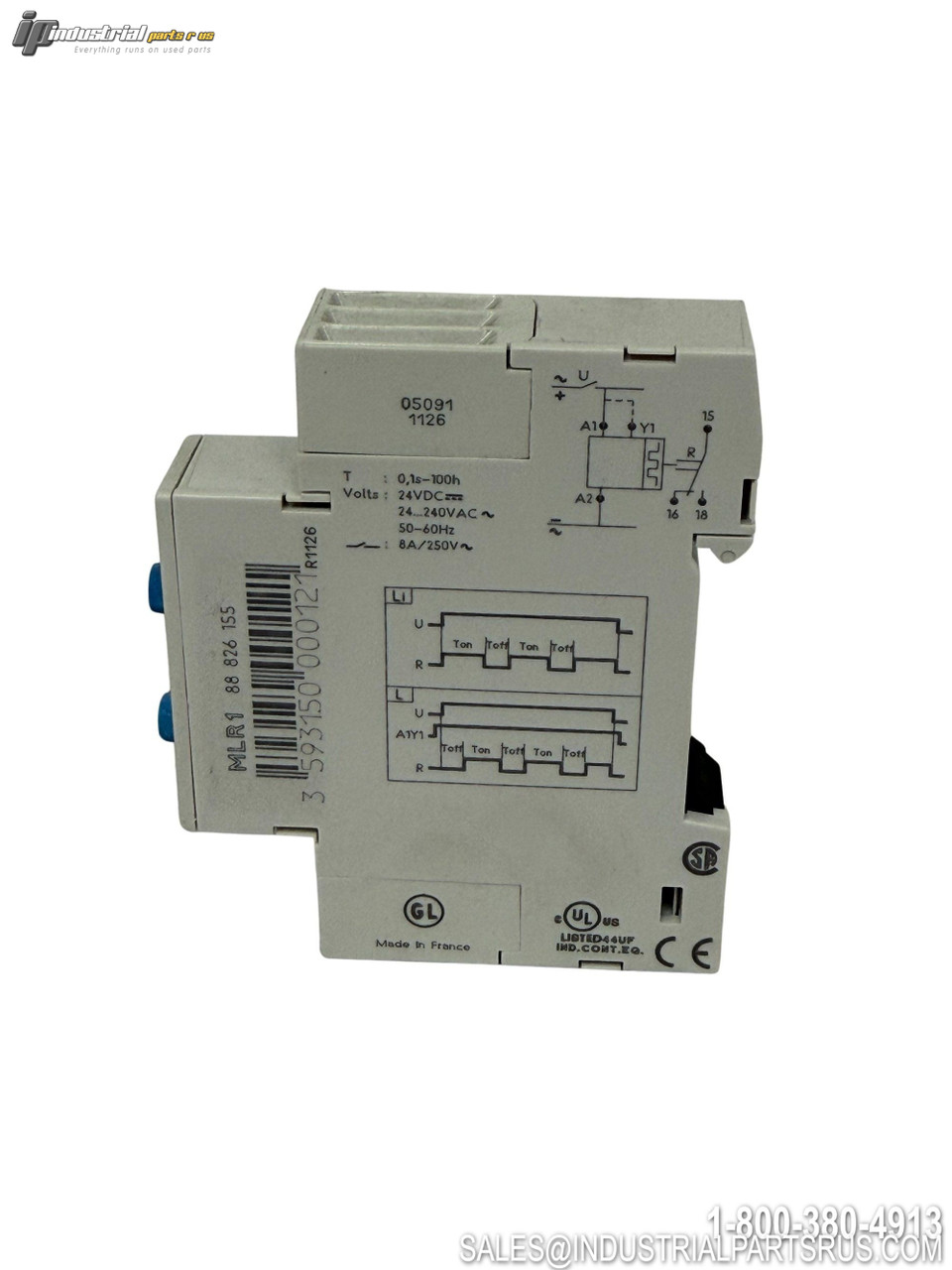

The Crouzet MLR1 88 826 155 is a 17.5mm DIN rail mounted time delay relay designed for precise timing control in industrial automation applications. This bi-function timer features Li-L timing functions with adjustable time ranges from 0.1 seconds to 100 hours, making it suitable for a wide range of timing applications in control panels and machinery.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Crouzet |
| Model/Part Number | MLR1 88 826 155 |
| Product Type | Time Delay Relay |
| Series | MLR1 |
| Functions | Li - L (Bi-function) |
| Timing Range | 0.1s → 100h |
| Timing Ranges | 1s - 10s - 1min - 10min - 1h - 10h - 100h (7 ranges) |
| Output | 1 Changeover Relay (SPDT) |
| Contact Rating | 8A @ 250V AC |
| Supply Voltage | 24V DC / 24-240V AC |
| Frequency | 50-60Hz |
| Connections | Screw Terminals |
| Mounting Type | DIN Rail Mount |
| Width | 17.5mm |
| Repetition Accuracy | ±0.5% (IEC/EN 1812-1) |
| Temperature Drift | ±0.05%/°C |
| Voltage Drift | ±0.2%/V |
| Display Accuracy | ±10% @ 25°C (IEC/EN 61812-1) |
| Min Pulse Duration | 30ms (relay version) |
| Weight | 60g |
| Status | Discontinued (replaced by 88 827 155) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail Mount
Current Rating 8A
Manufacturer Crouzet
Part Number MLR1 88 826 155
Series MLR1
Shelf K-41
Model MLR1 88 826 155
Coil Voltage 24V DC / 24-240V AC
MPN MLR1 88 826 155
Type Time Delay Relay
