Product Description

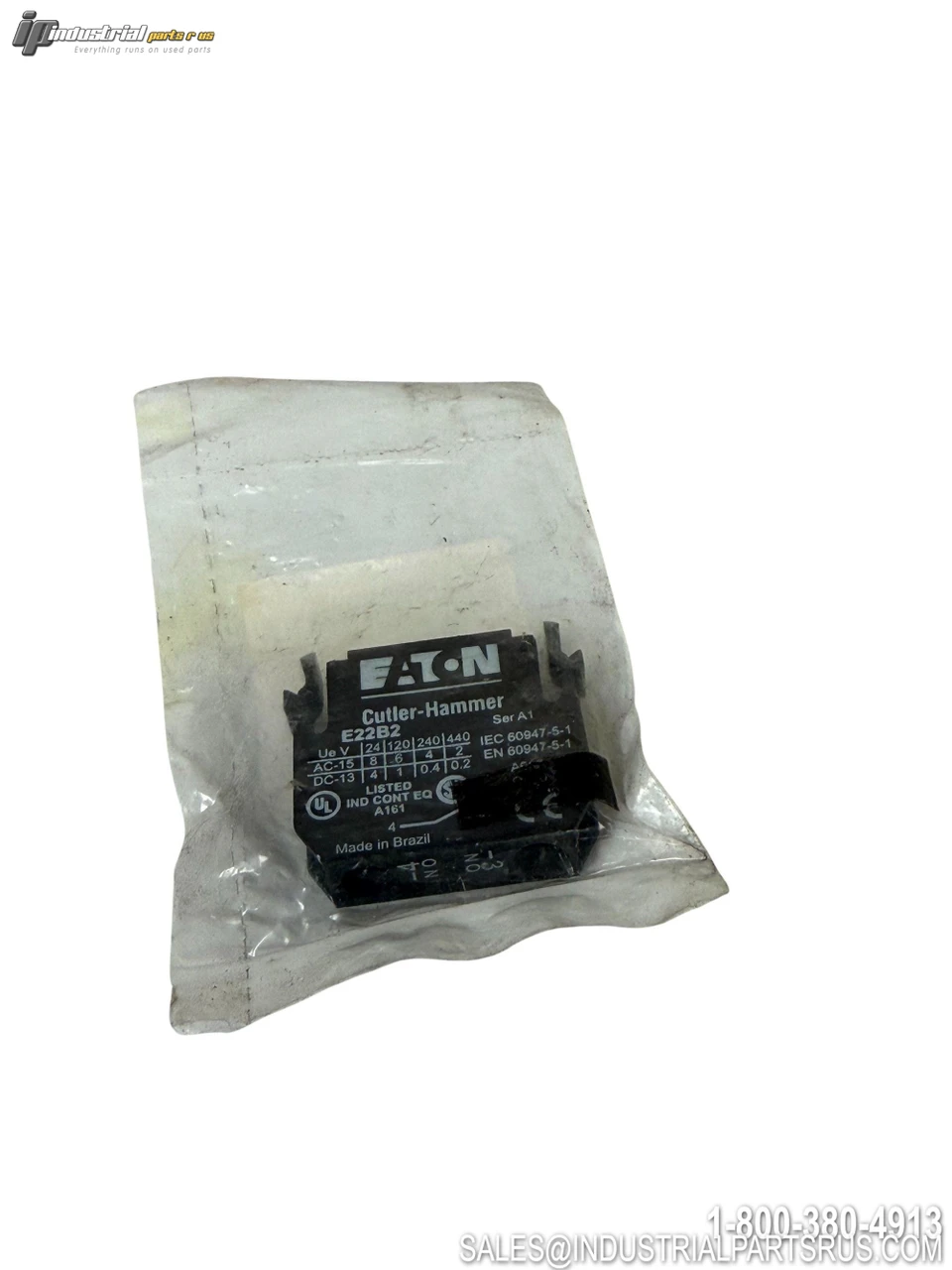

The Eaton E22B2 is a heavy-duty non-metallic standard contact block designed for the E22 series 22.5 mm pushbutton and selector switch platform. It features a 1 Normally Open (NO) contact configuration with silver contacts, rated at 10A/600VAC and 2.5A/600VDC, making it well-suited for industrial control and automation panel applications. The block mounts to the front of E22 series operators via screw terminals and supports stackable configurations for flexible circuit logic within tight enclosure footprints.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Eaton |
| Model / Part Number | E22B2 |
| Product Name | E22 Pushbutton Contact Block |
| Series | E22 |
| Type | Heavy Duty Non-Metallic Standard Contact Block |
| Contact Configuration | 1NO (1 Normally Open) |
| Number of Poles | 1 |
| Contact Current Rating (AC) | 10 A at 600 VAC |
| Contact Current Rating (DC) | 2.5 A at 600 VDC |
| Contact Voltage (AC Max) | 600 VAC |
| Contact Voltage (DC Max) | 600 VDC |
| Contact Material | Silver |
| Operator Type | Push Button |
| Terminal Type | Screw Terminal |
| Mounting Type | Front Mounting |
| Panel Cutout / Diameter | 22.5 mm |
| Body Material | Non-Metallic (Heavy Duty) |
| Dimensions (L x W x H) | 1-1/2 in x 1-1/2 in x 1/2 in |
| Certifications | CE, CSA, UL 508, Lloyd's Register, IEC 947-5-1 MTTA |
| UPC | 782113466828 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 10A at 600VAC
Manufacturer Eaton
Part Number E22B2
Shelf P-9
Model E22B2
MPN E22B2
Type Push Button
