Product Description

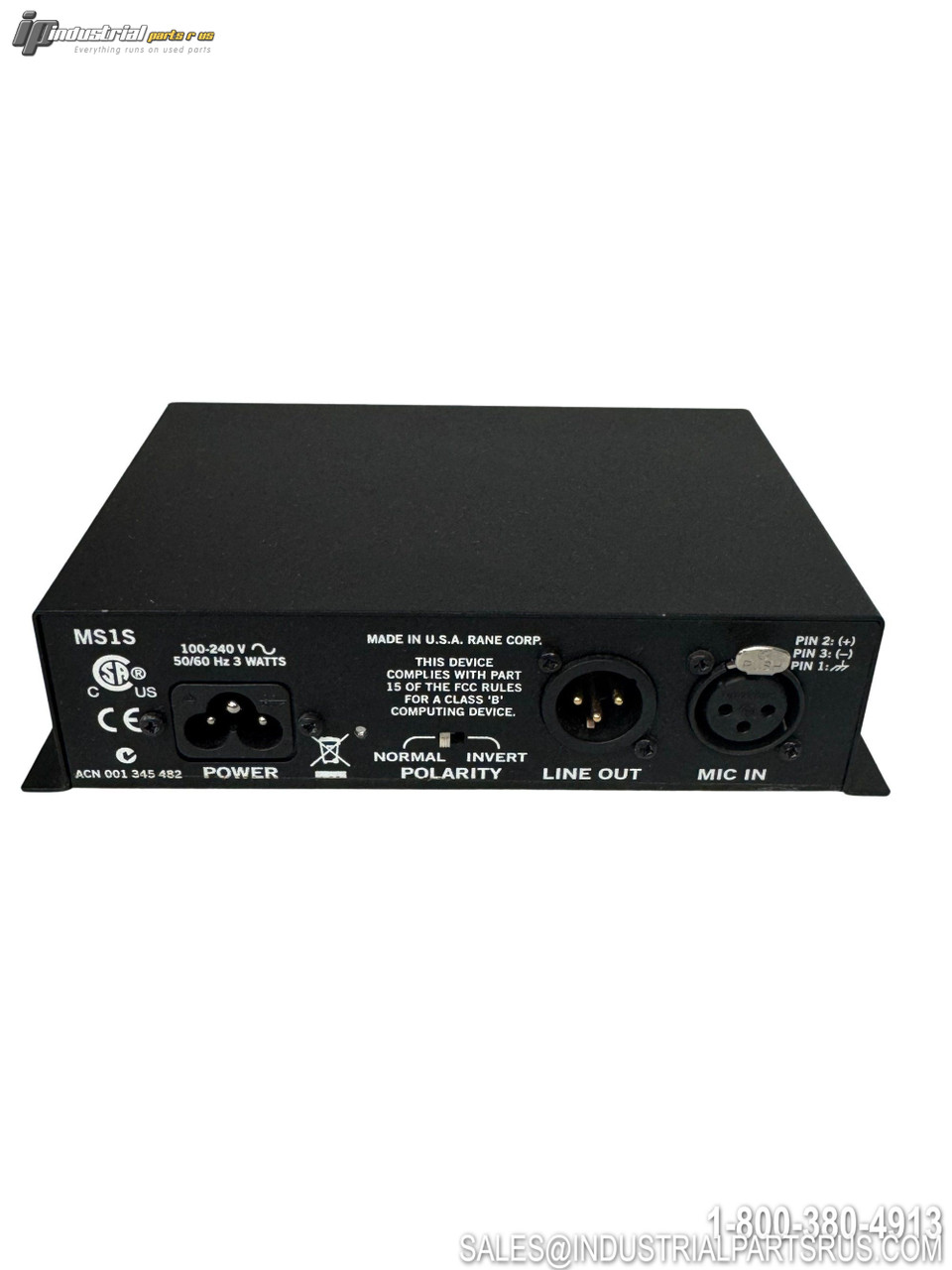

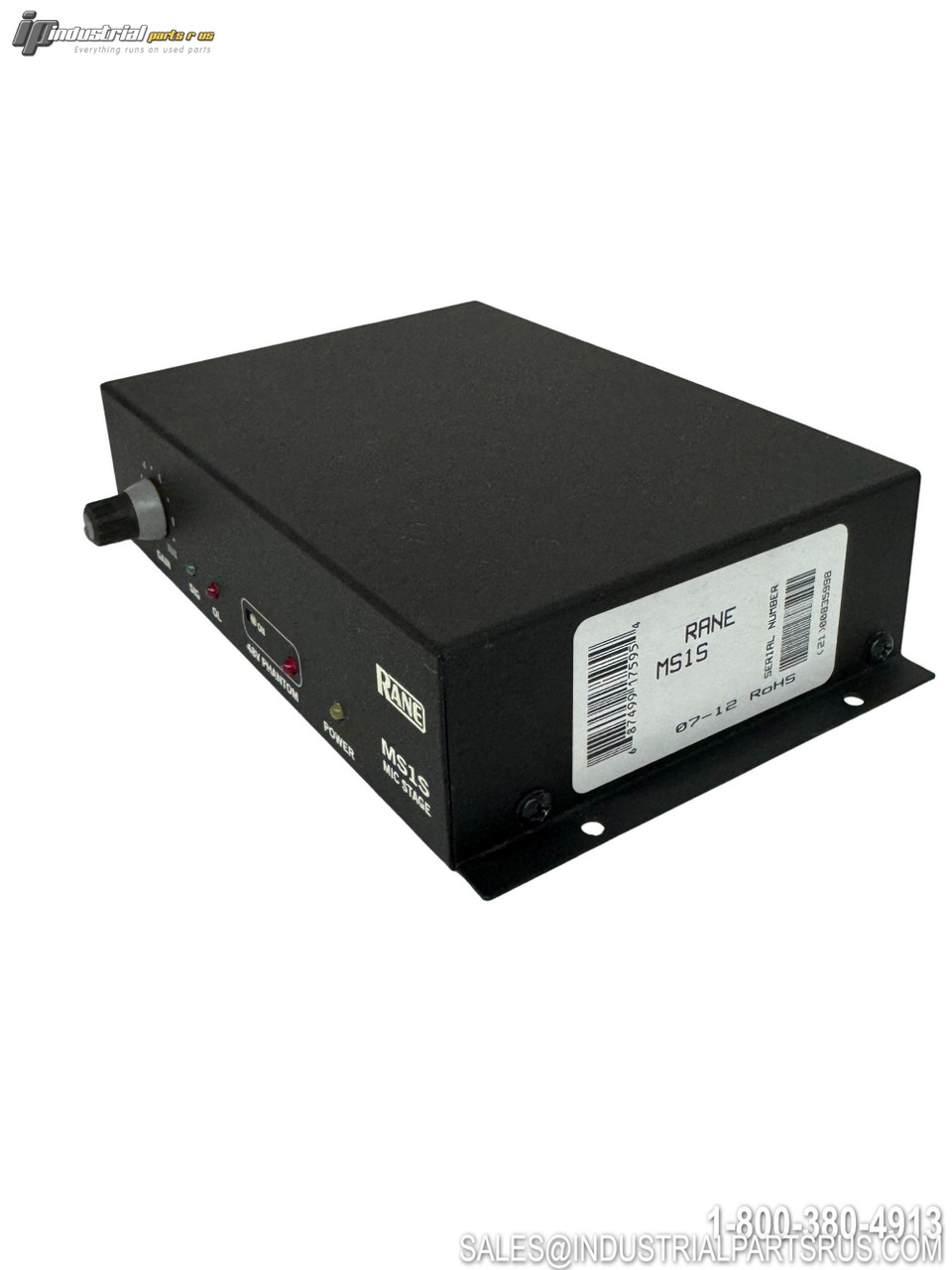

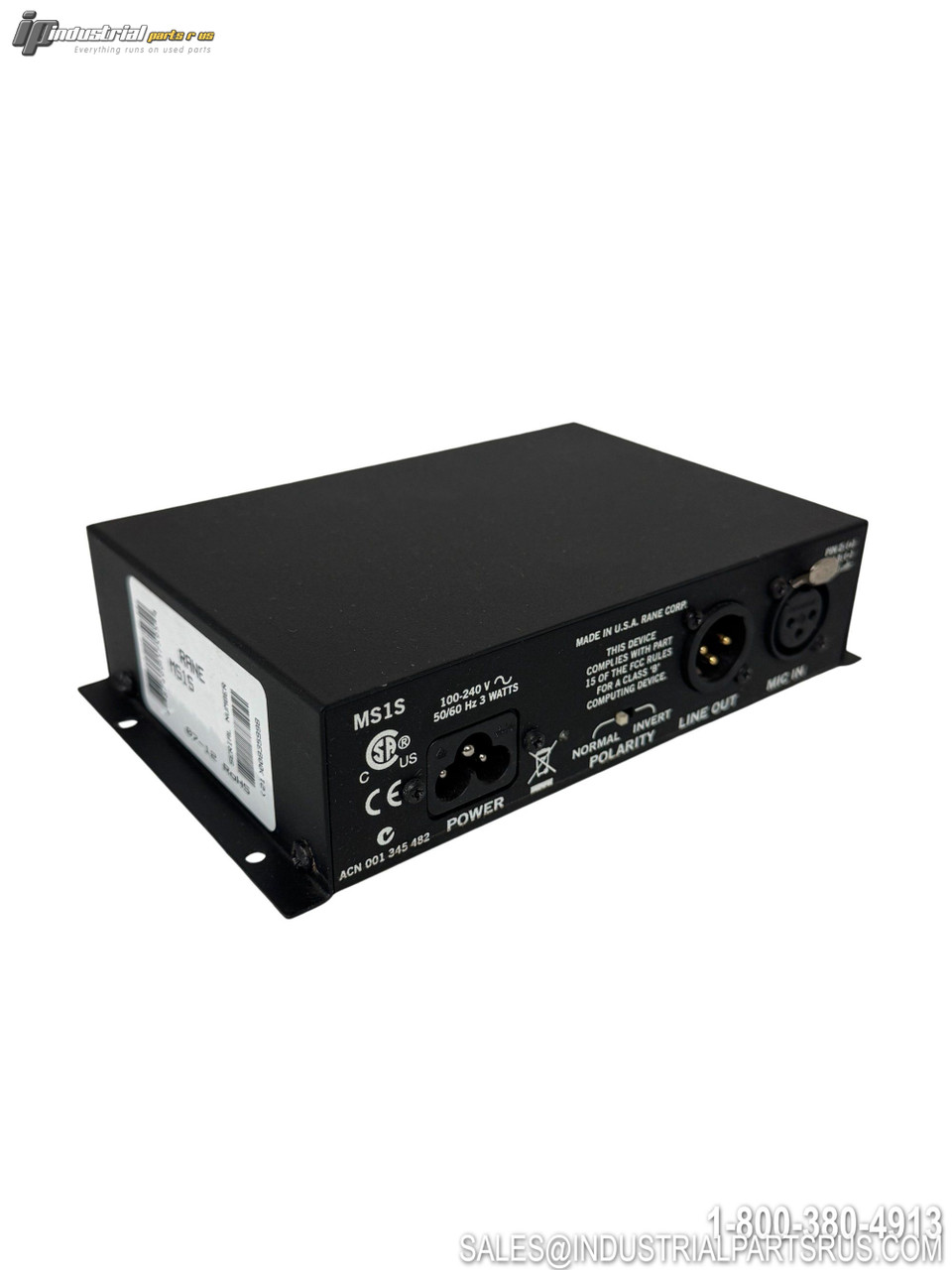

The Rane MS1S Microphone Stage is a professional single-channel microphone preamplifier designed to provide high-quality conversion from microphone level to line level. This compact unit features an ultra low noise amplifier design with true differential input and high common-mode rejection, delivering performance typically found only in expensive mixing consoles.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Rane |
| Model/Part Number | MS1S |
| Input Impedance | 2k Ω Balanced |
| Gain Range | 15 to 60 dB |
| Phantom Power | +48V (10 mA max) |
| Phantom Power Impedance | 6.81k Ω Each leg Max |
| Frequency Response | 3 Hz to 200 kHz |
| Input Level Range | +9 / -35 dBu |
| Equivalent Input Noise | -127 dBu |
| Dynamic Range | 114 / 91 dB |
| THD+Noise (60dB gain) | 0.004% (Output=+20 dBu) |
| Input Connector | XLR Balanced |
| Output Connector | XLR Balanced |
| Output Type | Cross-coupled balanced |
| Features | Signal/Overload LED, Polarity switch |
| Power Supply | Internal universal power supply |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Cross-coupled balanced
Manufacturer Rane
Part Number MS1S
Shelf K-51
Model MS1S
MPN MS1S
Type Microphone Preamplifier
